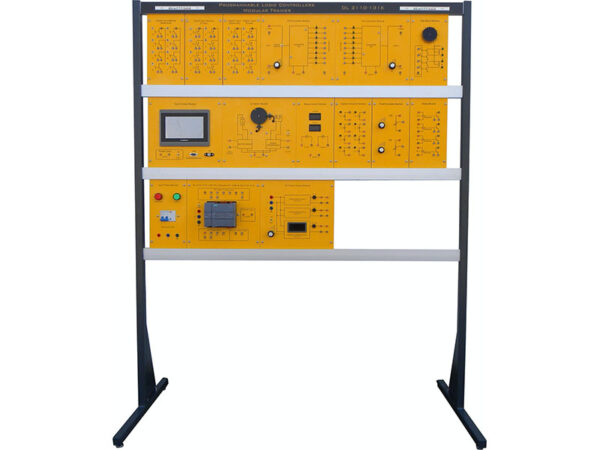

Programmable Logic Controllers Modular Trainer

Model No. DL 2110-131K (without PLC)

Didactic equipment. This modular trainer must allow the study of PLC and HMI.
The modular panel must correspond to a tubular steel structure, treated with electrostatic painting.
It must have 4 lines for manual and fast fixation of the modules without the need for tools.
All terminals and connection points must be available through 2 or 4 mm terminals (according to the voltage).
The components, as well as their terminals and access points, must be identified with the respective symbol printed in silk-screen.
It shall be possible to choose one of the following PLC modules: MITSUBSHI FX3GA series or Allen-Bradley(AB) Mircro830 series or Siemens S7-1200 series. PLC shall also be changed according to the requirements of customer.

This trainer composed by:
PLC DEVELOPING SOFTWARE shall run on the following operation system: windows XP or windows 7 or windows 8

DIGITAL INPUT MODULE
This module is produced to simulate digital input signals.
1. Panel and back cover
2. Composed of 4 NAF contact switches with retention and 4 NA/NF momentary contact switches;
3. Simulation of logical levels;
4. 2mm terminals for IO interface
5. 18 Digital Input/output terminals with COM
6. Dimensions of 150 x 250 mm.

DIGITAL INDICATION MODULE
This module is produced for luminous indication of digital output signals of 8 Bits.
1. Panel and back cover
2. Composed of 8 LEDS with resistors for connection at 24 VDC;
3. Appropriate for PLC’s with NPN or PNP outputs;
4. 2mm terminals for IO interface
5. 16 Digital Input/output terminals with COM
6. Dimensions of 150 x 250 mm.

RELAY MODULE
This module was produced for the interfacing with elements of electrical commands with the PLC
1. Panel and back cover
2. Composed of 4 relays for currents of 10 A and coil of 24 VDC, with NA/NF reversing contact;
3. 2mm terminals for IO interface
4. 20 Digital Input/output terminals with COM
5. Dimensions of 150 x 250 mm.

POTENTIOMETERS MODULE
This module is produced for the simulation, in the PLC, of analogical signals of voltage or current for analogical inputs.
1. Panel and back cover
2. Composed of 2 linear potentiometers with the three terminals accessible;
3. 2 linear potentiometers:10K±5%
4. 2mm terminals for IO interface
5. 6 Analog Input terminals
6. Dimensions of 150 x 250 mm.

MEASUREMENT MODULE
This module is produced to measure the voltages and currents at the analogical inputs and outputs.
1. Panel and back cover
2. Consists of two meters, Digital Tube- showing voltage and current values.
3. Resolution:voltage meter-1mV. current meter-1 A
4. 2mm terminals for IO interface
5. 4 Analog Input terminals
6. 2 DC input terminal
7. Dimensions of 150 x 250 mm.

A/D CONVERTER MODULE
This module is produced for the study of Analogical / Digital converters.
1. Panel and back cover
2. A / D converter of 8 bits;
3. Input of analogical signal of 0~10 VDC and of 4~20 mA;
4. Output of 8 bits at 24 VDC;
5. 8 LED
6. 2mm terminals for IO interface
7. 4 Analog Input terminals with COM
8. 9 Digital Output terminals with COM
9. 2 DC input terminal
10. 1 switch
11. Dimensions of 300 x 250 mm.

D/A CONVERTER MODULE
This module is produced for the study of Digital / Analogical converters.
1. Panel and back cover
2. D / A converter of 8 bits;
3. 8 LED
4. Input of 8 bits at 24 VDC;
5. Output of analogical signal of 0~10 VDC and of 4~20 mA;
6. 2mm terminals for IO interface
7. 4 Analog Output terminals with COM
8. 9 Digital Input terminals with COM
9. 2 DC input terminal
10. 1 Potentiometers
11. Dimensions of 300 x 250 mm.

STEP MOTOR MODULE
This module is produced for the study of a drive of step motors.
1. Panel and back cover
2. Driver of electronic activation of 4 bits;
3. 2mm terminals for IO interface
4. 5 Digital Input terminals with COM
5. 4 LED
6. 1 Black indicator disk
7. Dimension of 150 x 250 mm.

DC MOTOR MODULE
This module is produced to simulate industrial processes of angular speed with DC motor.
1. Panel and back cover
2. Electronic driver and encoder for generating pulses by rotation;
3. It allows reading of speed at the quick counting input of the PLC;
4. Output type PNP/NPN, get through the switch
5. 2mm terminals for IO interface
6. 2 Analog Output terminals with COM
7. 2 Digital Output terminals with COM
8. 2 DC input terminal
9. Load the motor: Rated voltage 24VDC,300rpm
10. Dimensions of 300 x 250 mm.

DC POWER SUPPLY MODULE
This module is produced to introduce a source of voltage with protection against inversion of poles and microcontrolled overcurrent
1. Panel and back cover
2. AC Power input
3. AC Power switch
4. A fixed voltage output of 12VDC/1A;
5. A fixed voltage output of 24VDC/1A;
6. A variable voltage output of 0 … 10VDC (Adjust by potentiometer) with digital Display voltmeter;
7. All DC output power supplies have overcurrent protection
8. 12 DC Output terminal
9. Dimensions of 300 x 250mm.

TOUCH SCREEN MODULE
This module is produced to establish a monitoring system with PLC
1. Panel and back cover
2. Touch screen type: PK070-10T
3. 12 DC input terminal
4. DC Power switch
5. Dimensions of 300 x 250mm.

Specification:
1. Displayer 7” TFT
2. Resolution 800 x 480
3. Display color 65536
4. Communication port RS232/RS422/RS485
5. Power supply 24±10%VDC
6. 2 DC input terminal
7. USB port

INPUT POWER MODULE
Control the total power of the whole device
1. Panel and back cover
2. Power supply: single-phase AC127V, 60Hz
3. Total power switch: with leakage protection, 16A
4. With Main power, Power on the indicator
5. The AC127V power output adopts a 4mm jack
6. Dimensions of 150 x 250mm.
7. Supplied with a set of 30 connection cables, 2 and 4 mm, and an experiment manual.

PLC ALLAN BREDLEY FOR DL 2113-131K – Didactic equipment
The module must embedded the 2080-LC30-16QVB PLC and the expansion modules 2080-IF2 and 2080-OF2. All PLC input/output pins must be located on the panel.
Users can connect the I/O pins to other application modules with 2mm test leads.

The module include:
1. Panel and back cover
2. PLC and expansion modules
3. AC Power input
4. AC Power switch
5. DC power output
6. 2mm terminals for I/O interface

Module Specification:
1. Power supply: AC 220V single phase, 500VA
2. DC output: 24V, 0.5A
3. 12 Digital Input terminals with COM
4. 10 Digital output terminals with COM
5. 6 Analog input terminals with COM
6. 8 Analog output terminals with COM
7. 2 DC output terminal
8. Dimensions: 300 x250mm

PLC SIEMENS for DL 2113-131K – Didactic equipment
The module must embedded the 1211C CPU and the expansion modules SB 1232.
All PLC input/output pins must be located on the panel.
User can connect the I/O pins to other application modules with 2mm test leads.

The module include:
1. Panel and back cover
2. PLC and expansion modules
3. AC Power input
4. AC Power switch
5. DC power output
6. 2mm terminals for I/O interface

Module Specification:
1. Power supply: AC 220V single phase, 500VA
2. DC output: 24V, 0.5A
3. 7 Digital Input terminals with COM
4. 6 Digital output terminals with COM
5. 3 Analog input terminals with COM
6. 2 Analog output terminals with COM
7. 2 DC output terminal
8. Dimensions: 300 x250mm

PLC MITSUBISHI FOR DL 2113-131K – Didactic equipment
The module must embedded the FX3GA-24MT-CM PLC and expansion FX3U-4AD-ADP. All PLC input/output pins must be located on the panel.
User can connect the I/O pins to other application modules with 2mm test leads.

The module include:
1. Panel and back cover
2. PLC and expansion modules
3. AC Power input
4. AC Power switch
5. DC power output
6. 2mm terminals for I/O interface

Module Specification:
1. Power supply: AC 220V single phase, 500VA
2. DC output: 24V, 0.5A
3. 16 Digital Input terminals with COM
4. 12 Digital output terminals with COM
5. 2 Analog input terminals with COM
6. 2 Analog output terminals with COM
7. 2 DC output terminal
8. Dimensions: 300 x250mm
