Programmable Logic Controller – 36 In/28 Out

Model No. DL 2210B

system that control a wide variety of devices and meet the different needs of the automation industry.
The CPU in a single compact device must combine a microprocessor, an integrated power supply, input and output circuits, integrated fast PROFINET I/O supporting the function of motion control and analog inputs, thus creating a powerful on-board controller.
After loading the program, the CPU shall contain the logic required for the monitoring and control devices used in the application.
The CPU must monitor the inputs and must change outputs according to the logic of the user program, which can include Boolean logic, counting and timing, complex math functions and for communicating with other intelligent devices.
To communicate with the programming device, the CPU must make available a integrated PROFINET door.
Through the PROFINET network the CPU shall communicate with another CPU.

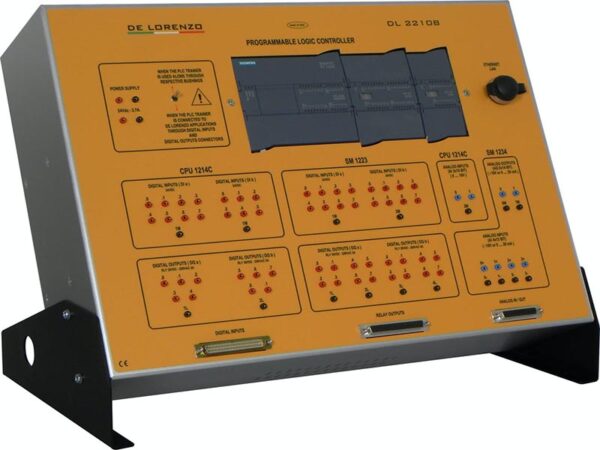

The front panel include:
– 1 Ethernet port
– 2 37-pin connectors (1 input-male + 1output-female) for direct connection to the simulation panels through flat cables
– 1 25-pin connector female for analog signals connections
– 85 pcs. of 2 mm terminals distributed in 7 sections: 4 power supplies, 34 digital inputs, 32 digital outputs, 11 analog inputs, and 4 analog outputs.

The controller include:
– I/O digital onboard: 14 inputs (24VDC) / 10 outputs (relay, 2A)
– I/O analog onboard: 2 inputs (0…10V, 10bits resolution)
– User memory: working (75Kbytes), load (4Mbytes, it can be extended up to SD_optional card), and Retention (10 Kbytes)
– Merker memory (M): 8192 bytes
– Fast counters: Built-in (6), single phase (3 at 100kHZ and 3 at 30kHz), in quadrature phase (3 at 80kHz and 3 at 20kHz)
– PROFINET: 1 Ethernet communication port
– Running speed: 0.08 µs/instruction (Boolean), 1.7 µs/instruction (Move Word) and 2.3 µs/instruction (real math)
– Additional digital I/O (SM 1223): 16 inputs (24VDC) / 16 outputs (relay,2 A)
– Additional analog I/O (SM 1224): 4 inputs (±10V, ±5V, ±2,5V or 0…20mA, 12bits resolution + sign bit)/2 outputs ((±10V, 14bits resolution or 0…20mA, 13bits resolution).

The items supplied with relevant software with the following minimum features:
– provide an intuitive environment where it shall be possible to develop, modify and the logic controller of the application, including the necessary tools used to manage and configure project devices, such as PLC and HMI. It must also provide a complete online guide facilitating the search of information.
– The software must provide standard programming languages that shall allow the development of the control program in a practical and efficient way.
– LAD (ladder diagram) must correspond to a graphical programming language that shall allow to represent of the program as electrical circuits.
– FBD (function block diagram) ) must correspond to a programming language based on the graphic symbols of Boolean algebra.
– SCL (structured control language) must correspond to an advanced programming language developed based on text.
