Programmable Logic Controller – 12 In/8 Out

Model No. DL 2110AH

It must be a powerful and flexible system that controls a wide variety of devices and meet the different needs of the automation industry.

The LOGO! is a universal logic module that must integrate:
Controls Operator and display panel with background lighting Power supply Interface for expansion modules interface for a memory card, battery card, combined memory/battery card, LOGO  PC cable or USB PC cable Interface for an optional text display (TD) module

Pre-configured standard functions, for example, on- and off-delays, pulse relay and softkey Timers Digital and analog flags

After loading the program, the LOGO unit (CPU) shall contain the logic required for the monitoring and control devices used in the application.

The CPU must monitor the inputs and must change outputs according to the logic of the user program, which can include Boolean logic, counting and timing, complex math functions, and for communication with other devices.

To communicate with the programming device, the CPU must have available an integrated slot.

Through it and with a USB PC cable the CPU shall communicate with the PC.

The front panel include:

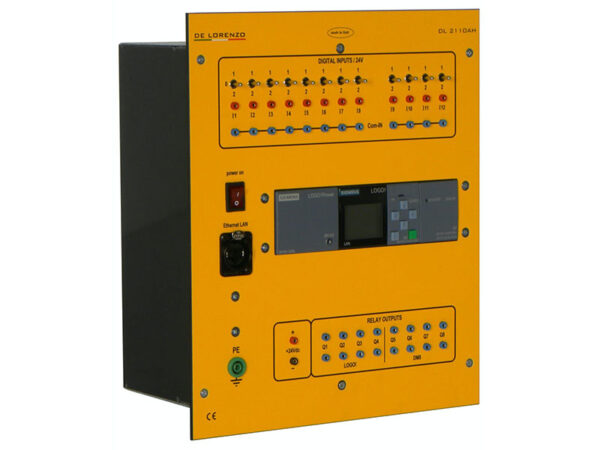

– Output dc voltage: 24V available on two 2mm terminals Power supply socket: single-phase from mains
– 12 switches (3 positions: unstable/off/stable) on 1 column for PLC inputs enabling Twelve 2mm terminals for inputs
– Twelve 2mm terminals for inputs (common)
– Sixteen 2mm terminals for 8 relay outputs (2 for each)

The module include:
– Power supply (LOGO!Power 24V/1.3A) I/O digital onboard: 8 inputs (24VDC) / 4 outputs (relay, 10A)
– Additional digital I/O (DM8 24R): 4 inputs (24VDC) / 4 outputs (relay, 5A).
– USB PC cable
– LOGO!Soft Comfort (SW)
– The software must provide standard programming languages that shall allow the development of the control program in a practical and efficient way.
– LAD (ladder diagram) must correspond to a graphical programming language that shall allow to represent of the program as electrical circuits.
-FBD (function block diagram) must correspond to a programming language based on the graphic symbols of Boolean algebra.
