Process Simulator

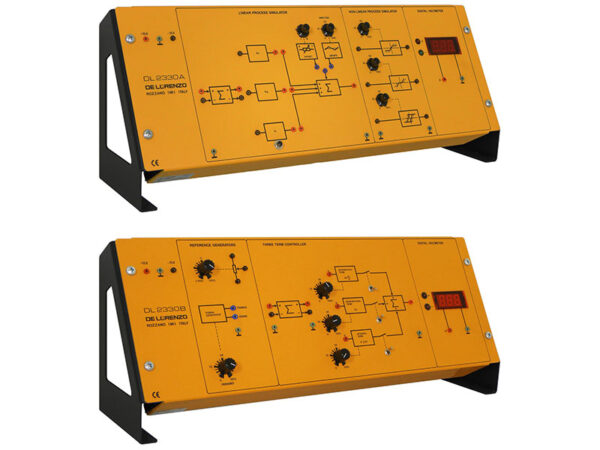

Model No. DL 2330A

This Board Is Basically Structured In Two Sections:
– A Linear Process Simulation, With Two Summing Amplifi Ers, Three Blocks With Proportional, Integral, Derivative Transfer Functions, Offset And Drift Generators
– A Hysteresis Non?Linear Simulation, Dead Band And Threshold It Includes A Digital Voltmeter.
– The Board Is Supplied Complete With A Set Of Stackable, Plug In Cables Of Suitable Lengths And Colours And With A Training Manual.
– Power Supply: ± 15Vdc, 300Ma

Experiments
– Analysis And Simulation Of Linear Processes
– Open And Closed Loop Control Of Linear Systems
– Behaviour Of The Control System Against Fixed Or Time Variable Disturbances
– Steady State Error
– System With Two Time Constants
– Calibration Of A Control System And Criteria For The
– Optimum Setting Of The Pid Parameters
– Transfer Function Of The Pid Controllers
– Method Of Permanent Oscillation
– Method Of Damped Oscillations
– Experimental Study Of The Pi Controller
– Experimental Study Of The Pd Controller
– Experimental Study Of The Pid Controller
– Analysis And Study Of Typical Non Linear Elements (Saturation, Threshold, Hysteresis)
