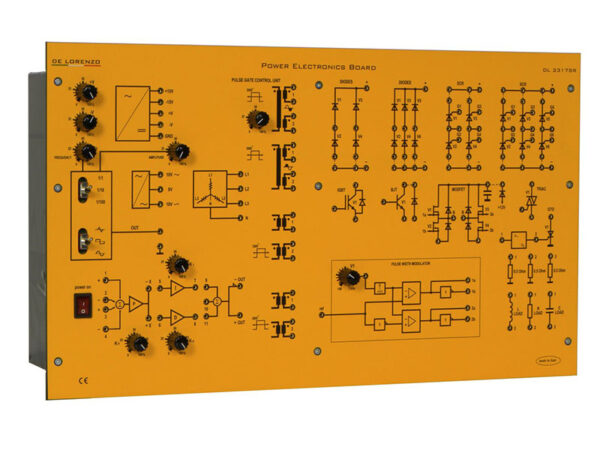

Power Electronics Board

Model No. DL 2317SR

This Board Allows The Study Of Several Power Electronics Circuits, As Detailed Here Under.

Technical Features:
The Following Components Are Available On The Board:
– Diodes For Circuit M1U, M2U, M3U, M6U
– Scr For Circuit M1C, M2C, M3C, M6C
– H Bridge With Mosfet
– Pulse Generator For Scr Control
– Generator For H Bridge Control (PWM)
– Function Generator
– Three-Phase Generator (12 Vpp)
– Single-Phase Source (12 Vpp)
– Built-In Power Supply.

Experiments:
– Single-Phase Uncontrolled Rectifier M1U And B2U
– Single-Phase Controlled Rectifier M1C And B2C
– Three-Phase, Single Wave, Uncontrolled Rectifier B3U
– Three-Phase, Single Wave, Controlled Rectifier B3C
– Three-Phase, Full Wave, Uncontrolled Rectifier B6U
– Three-Phase, Full Wave, Controlled Rectifier B6C
– Pulse Width Modulation (PWM) Circuit To Control Direct Current
– Pwm To Control A Motor With A H Bridge
– Pwm On H Bridge To Understand The Principle Of Inverter

Experiments On The Dc Supply:
– Basic Pulse Width Modulation (PWM) Circuits
– Pwm With H-Circuit, Dc-Evaluated
– Pwm With H-Circuit, Sine-Evaluated

Experiments With The Gto (Gate-Turn-Off):
– Firing Pulse Conditioning For The GTO
– The GTO As A Dc Actuator

For more details download catalogue from here
