Power Electronics

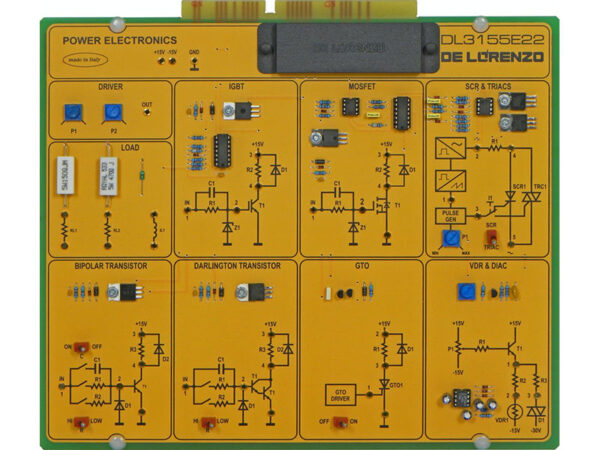

Model No. DL 3155E22

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.
With this card, the students can study the characteristics and operations of the power electronics components, as the transistor in the bipolar and Darlington configurations, MOSFET and IGBT, SCR and TRIAC, thyristor GTO, VDR, and DIAC.

Theoretical Topics:
– Structure of the bipolar transistor
– The Darlington transistor
– The MOSFET
– The IGBT
– The SCR and the TRIAC
– The GTO thyristor
– Operation with resistive load
– Operation with inductive load
– The VDR and the DIAC

Circuit Blocks:
– Bipolar transistor
– IGBT
– MOSFET
– SCR & TRIACS
– Darlington transistor
– GTO
– VDR & DIAC
– Driver

For more details download catalogue from here
