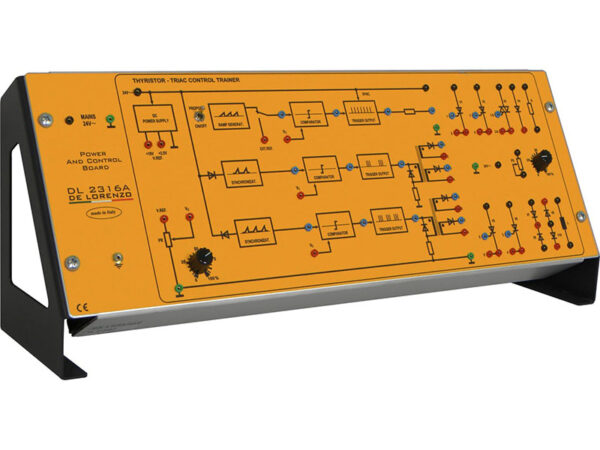

Model No. DL 2316A
It Allows The Autonomous Study Of The Thyristors In The Main Single-Phase Bridge Circuit Confi Duration (Semi and Totally Controlled) And In The Ac/Ac Converters As Well As The Study Of The Triac In The Control Of The Alternating Voltage And In The Controlled RectifiCation.
The Power Section Includes: 4 Thyristors, 1 Triac, 4 Diodes, 1 Fl Ywheel Diode, And 1 Ohmic-Inductive Load.
The Control Section Allows The Realization Of:
Proportional Control, On/Off Control Or Phase Control, Both On The Positive And Negative Semiwave.
Furthermore, There Is A Potentiometer For The Manual Control Of The Devices Activation.
The Board Is Supplied Complete With A Set Of Stackable, Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: 24Vac,1A,50/60Hz
Experiments:
– SCR Control With Alternating Voltage Synchronous And In Phase With The Anode Voltage
– SCR Control With Alternating Voltage Synchronous And In Phase With The Anode Voltage Supplying The Gate With And Without Flywheel Diode
– Half-Wave Rectifiers With Ohmic-Inductive Load With And Without Flywheel Diode
– Half Controlled Single-Phase Rectifier Bridge (B2Hz)
– Half Controlled Single-Phase Rectifier Bridge With (B2Hkf) And Without (B2Hk) Flywheel Diode
– Fully Controlled Single Phase Rectifier Bridge
– Control Of Full-Wave Rectification With Ohmic Load And With Ohmic-Inductive Load
– Half-Wave Ac/Ac Converter
– Full-Wave Ac/Ac Converter
– Triac Control In Quadrant I
– Triac Control In Quadrant Iii
– Mains Alternating Voltage Regulation
– Pulse Train Control
– Triac Controlled Rectifier
