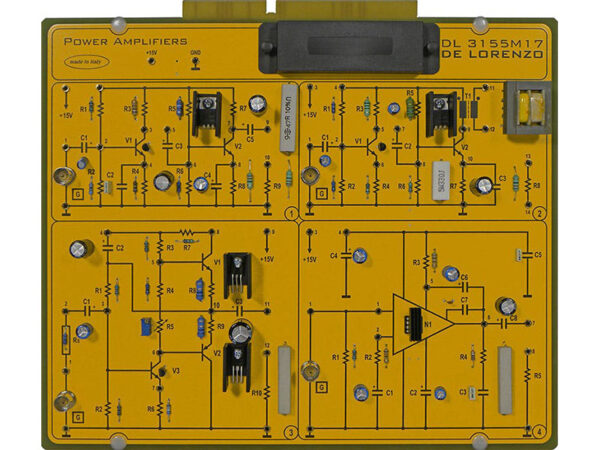

Power Amplifiers

Model No. DL 3155M17

Theoretical Topics:
– Typical Problems Relevant To Power Devices
– Power Amplifier Parameters
– Classification Of The Output Stages
– Harmonic Distortion
– Heat Dissipation
– Main Circuit Configurations
– Class A Amplifiers
– Amplifiers With Load Run By Direct Current
– Amplifier With Output Transformer
– Class B Output Stage
– Fault Simulation

Circuit Blocks:
– Class A Power Amplifier
– Class A Power Amplifier With Transformer Coupling
– Class Ab Power Amplifier
– Integrated Power Amplifier
