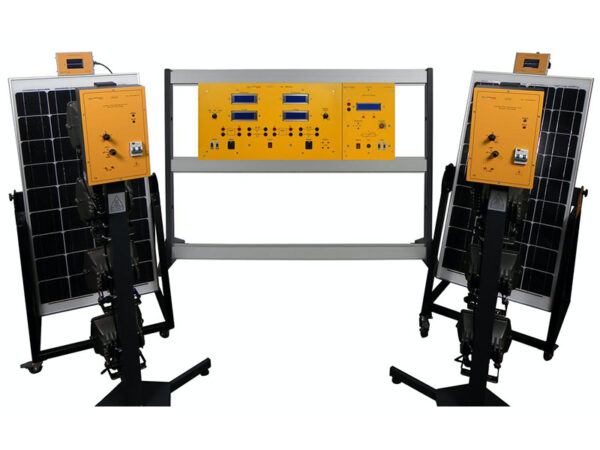

Photovoltaic Solar Panel Measurement Trainer

Model No. DL SOLAR-PV

Didactic system for the theoretical and practical study of photovoltaic solar panels.
With the photovoltaic solar panel measurement trainer, it is possible to perform experiments indoor and outdoor to determine and measure the characteristics of different types of photovoltaic panels and connections.
The system is provided with connecting cables, instruments and an experiments and learning activities manual.

TRAINING OBJECTIVES
– Solar panels under a variety of effects.
– Short-circuit current of a PV panel.
– Open-circuit voltage of a PV panel.
– Current at maximum output of a PV panel.
– Voltage at maximum output of a PV panel.
– Relationship between panel tilt, illuminance, short-circuit current and electrical output.
– Relationship between panel tilt and irradiation,
– Relationship between the solar panel output voltage and the irradiation,
– Relationship between the solar panel short-circuit current and irradiation.
– Determining the efficiency of a PV panel.
– Comparing different panel types.
– Series and parallel connections:
– Series connection of two solar panels, Parallel connection of two solar panels.
