Photovoltaic And Thermal Panels

Model No. DL TM11

The simulator allows the study, the performing of experiments and the troubleshooting for the following systems:
– Photovoltaic silicon single crystal cell, squared, side 135 mm
– Two photovoltaic cells with series connection
– Two photovoltaic cells with parallel connection
– Panel composed of 36 photovoltaic cells with series connection
– Thermal panel with liquid circulation

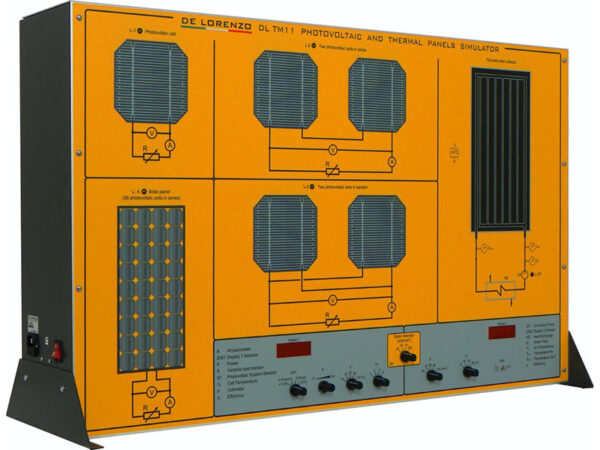

These systems are reproduced on the panel, through a color representation which allows a complete analysis of the fluid circuit, of its components and of the electrical/electronic circuit for control and regulation.

TECHNICAL DESCRIPTION
The experimentation on the photovoltaic systems (described here under) is organized as follows:
– Possibility to simulate several values of the solar radiation intensity (W/m2)
– Possibility to simulate several values of the temperature of the photovoltaic cells
– Possibility to change the electrical load of the above-mentioned photovoltaic systems
– Detection of the characteristic voltage-current (V-I), supplied by the photovoltaic systems, as a function of solar radiation intensity and cells temperature
– Detection of the characteristic voltage-power (V-P), supplied by the photovoltaic systems, as a function of solar radiation intensity and cells temperature
– Evaluation of the conversion efficiency (radiating energy or electric power) of the photovoltaic systems

The experimentation on the thermal panel with liquid circulation is organized as follows:
– Possibility to simulate several values of the solar radiation intensity (W/m2)
– Possibility to simulate several values of the temperature of the thermal-carrier liquid at the panel’s entrance
– Possibility to change the thermal-carrier liquid capacity through the thermal panel
– Evaluation of the thermal-carrier liquid temperature at the panel’s exit, as a function of the solar radiation intensity and of the entrance temperature
– Evaluation of the conversion efficiency (radiating energy or electric power) of the thermal panel
