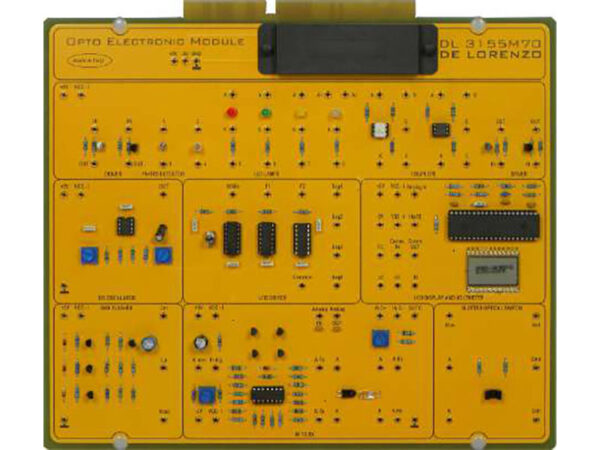

Opto Electronics

Model No. DL 3155M70

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic
engineering and computer engineering.
With this board the students can study the luminescent characteristics of the colors by analyzing factors such as change in color and intensity of light.
To fully understand these concepts tools as LED, photo detectors, LCD display, infrared detector sand optical switchesare used.

THEORETICAL TOPICS
-Concepts of physics on light and colors
-Light radiation
-The vision of colour
-Light bulb operation
-LEDs
-LEDs technical features
-Concepts of Liquid Crystal Display
-LCD types
-Light sensors
-Photodiodes
-Photoresistors
-Infrared radiation
-Opto-isolators

CIRCUIT BLOCKS
-Photo detector
-LEDs
-Couplers
-Light drivers
-555 Oscillator
-LCD driver
-LCD display and voltmeter
-3909 Flasher
-Infrared Transmitter/Receiver
-Slotted optical switch

For more details download catalogue from here
