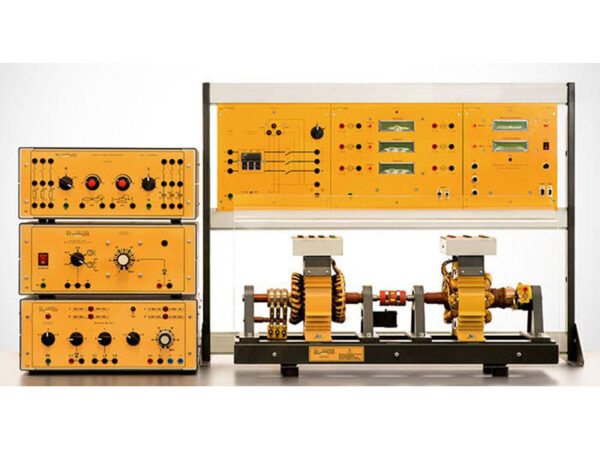

Open Lab Semi-Automatic Configuration

Model No. DL OPENLAB-SA

Didactic Experience And Application
The Dl Openlab-Sa Trainer Is A Hands-On Learning Platform That Provides A Comprehensive Course On Electrical Machines.
It Introduces The Basic Concepts Of Electrical Machines Construction Starting From The Electromagnetism Principles With The Analysis Of Magnetic Fields And Fluxes, Until More Advanced Experiments With The Characterization And The Efficiency Analysis Of Rotating Machines In Different Working Conditions.
Through This System, It Is Possible To Assemble The Most Common Types Of Electrical Machines Found In The Industry

To Carry Out The Following Didactic Experiences:

– Study Of The Magnetic Field
– Principles Of The Electromagnetic Induction
– Separately Shunt, Series, And Compound Excited Dc Motors
– Separately Shunt, Series, And Compound Excited Dc Generators
– DC motor and DC generator with permanent magnet
– Induction Motors: Three-Phase Slip Ring And Squirrel Cage, Single-Phase Repulsion And With Capacitor
– Dahlander Connection
– Synchronous Three-Phase Motor, Induction Regulator And Phase Shifter, Alternator, Universal Motor

SET OF ASSEMBLABLE MACHINES
The core of the system is the DL 10280, which includes all the components needed to assemble different types of rotating machines. The set consists of:
1. Base plate
2. Supports with bearing
3. Coupling joints
4. Flexible coupling
5. Electronic speed transducer
6. Assembling screws
7. Wrenches
8. DC stator
9. AC stator
10. Rotor with the commutator
11. Brush holder with 2 brushes
12. Squirrel cage rotor
13. Slip-Ring rotor
14. Brush holder with 6 brushes
