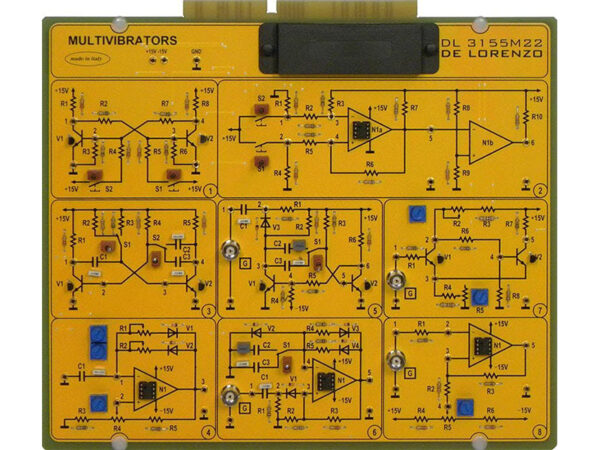

Multivibrators

Model No. DL 3155M22

Theoretical Topics:
– Bjt Bistable Multivibrator
– Resolution Or Transition Time
– Bistable Multivibrator Using The Operational Amplifiers
– Bjt Astable Multivibrator
– Astable Multivibrator Using The Operational Amplifiers
– Bjt Monostable Multivibrator
– Monostable Multivibrator Using The Operational Amplifiers
– Schmitt Trigger
– Schmitt Trigger Using The Operational Amplifiers
– Fault Simulation

Circuit Blocks:
– Operation Modes Of A Bjt Bistable Multivibrator (Flip-Flop)
– Bjt Bistable Multivibrator (Flipflop)
– Using The Operational Amplifiers
– Operation Modes Of A Bjt Astable Multivibrator
– Astable Multivibrator Using The Operational Amplifiers
– Operation Modes Of A Bjt Monostable Multivibrator
– Operation Modes Of A Monostable Multivibrator Using The Operational Amplifiers
– Operation Modes Of A Bjt Schmitt Trigger
– Schmitt Trigger

For more details download catalogue from here
