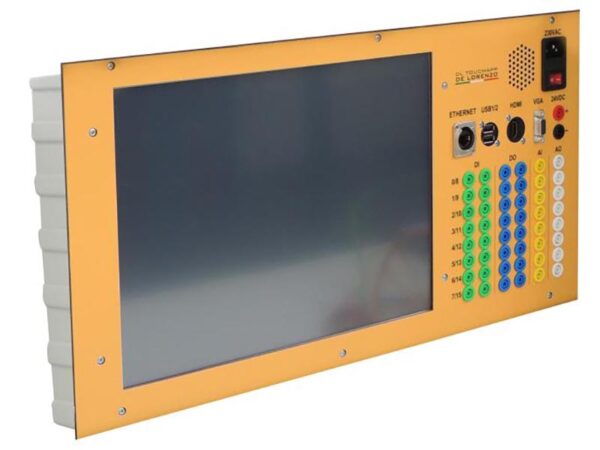

Multi Applications Plc Trainer

Model No. DL TOUCHAPP

has been designed for a wide variety of didactic applications both for the academic and industrial field.
It is an industrial process simulator for technical training with a virtual learning environment that offers a complete software package for discrete and continuous automation processes in various fields of industry.
It offers a robust hardware architecture with rugged and safe enclosure for demanding training applications. It’s a perfect trainer to learn the use of PLC (PLC not included).

Experiments:
– Logic basic functions
– Digital function modules
– Motor on/off
– Reversing Contactor
– Star-delta connection
– Reversing star-delta connection 1
– Reversing star-delta connection 2
– Dahlander circuit
– Motor with 2 separate windings
– Wound-rotor motor
– Conveyor belt system
– Heating control
– Running light
– Automatic filling system
– Tank system
– Fan control
– Traffic lights for road works
– Traffic lights
– Goods lift
– Pump control
– Monitoring of 3 pumps
– Drinks machine

Technical data:
– 16 Digital Input Channels: isolated, 0-24VDC
– 16 Digital Output Channels: isolated, open collector, 0-24VDC
– 8 Analog Input Channels: 12 bit-resolution, 0-10V
– 8 Analog Output Channels: 12-bit resolution, single-ended, 0-10V
– 4 mm safety sockets for DI/DO, AI/AO, and internal 24V DC power supply
– 2 x USB, 1 x Ethernet, 1 x HDMI, 1 x VGA ports
– 15.6’’ WXGA TFT Fanless Multi-Touch Panel Computer with
– CPU: LGA1150 socket 4th generation Intel® Core™ i3 – 4330TE 2.4 G processor
– System memory: w/DDR3L 4 GB
– Storage: 2.5” SATA 128 GB
– Resolution: 1366 x 768
– Power Supply 24 V DC, 3A
– Size (W x H x D): 512 x 297 x 100 mm.
– License for Windows Embedded Standard 7

For more details download catalogue from here
