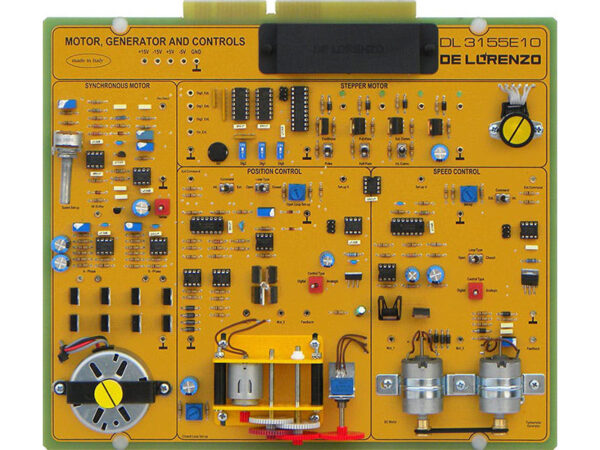

Motors- Generators And Controls

Model No. DL 3155E10

Theoretical Topics:
– Types Of Electric Motors
– Familiarization With Ac Motor Circuits
– Familiarization With Dc Motor Connection Types
– Familiarization With Stepper Motor Circuits
– Main Characteristics Of Dc Motor Driving Systems
– Speed Variation In Motor Controls Position Control With Dc
– Pwm Dc Motor Control Motor
– Bi-Directional H Bridge Dc Motor Control Circuit
– Advantages And Disadvantages Of Synchronous Motors
– Comparison Between Stepper Motor And Dc Motor
– Familiarization With Unipolar/Bipolar/Bifilar/Multi Phase Stepper Motors
– Fault Simulation

Circuit Blocks:
– Synchronous Motor
– Stepper Motor
– Open/Closed Loop Position Control Of A Dc Motor
– Digital/Analog Position Control Of A Dc Motor
– Open/Closed Loop Speed Control Of A Dc Motor With Tachogenerator
– Digital/Analog Speed Control Of A Dc Motor With Tachogenerator
