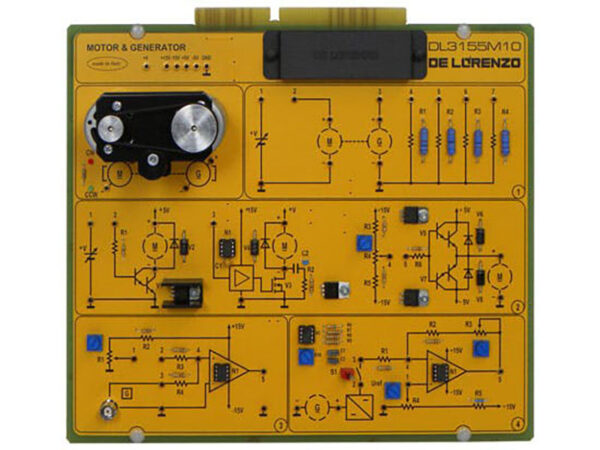

Motor And Generator

Model No. DL 3155M10

Theoretical Topics:
– Separate Excitation Dc Motors
– Shunt Excitation Dc Motors
– Series Excitation Dc Motors
– Compound Excitation Dc Motors
– Power And Efficiency
– Dc Motors As Generators
– Dc Motors As Tachometric Dynamo
– Dc Motor Speed Control
– Transistor Operation
– Semi-Controlled Singlephase Bridge Operation
– Totally Controlled Single
– Phase Bridge Operation
– Linear Control And Pwm Control
– Closed Loop Control
– Fault Simulation

Circuit Blocks:
– Measurement Of The Speed Of A Dc Motor
– Counter Electromotive Force Of A Dc Motor
– Load Operation Of A Dc Motor
– Power And Efficiency
– Control Circuit Of A Dc Motor
– Adjustment Of The Pwm Speed
– Adjustment Of The Closing Loop Speed

For more details download catalogue from here
