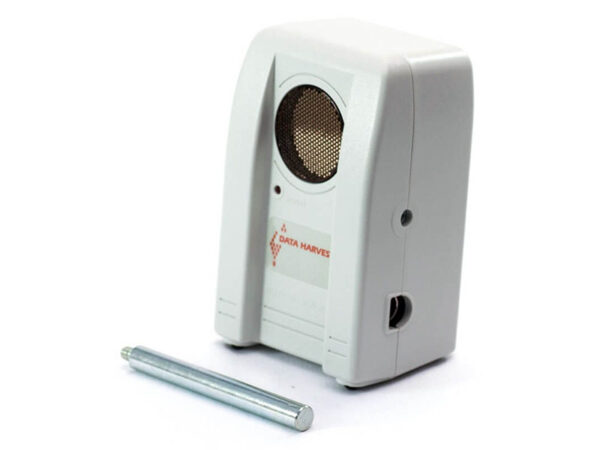

Motion Sensor

Model No. 3270

Records change in distance over time, making it ideal for teaching of mechanics/kinematics.
The Motion Sensor is a sonar device that emits ultrasonic pulses, which reflect off an object.
It measures the time it takes a high-frequency sound pulse to travel from the Sensor to an object and back.
This time data is used, together with the speed of sound, to determine the distance of an object from the Sensor.

Specification
– Ranges: 3, Walk, 2 Distances, Time
– Walk: 0.15 to 3 m (Resolution 1 mm)
– Distance (mm): 0.15 to 1 m, 0.15 to 2 m, 0.15 to 4 m, 0.15 to 8 m, 0.15 to 800 cm (Resolution 1 mm)
– Distance (inch): 6 to 300 inches (Resolution 0.1 inch)
– Minimum Distance: 0.15 m
– Max Sample Rate: 50 Hz/20 ms
– Steel Mounting Rod: Size 80 mm long x 10 mm diameter with a M6 thread

What’s in the box
– 1x Motion Sensor
– 1x Steel Mounting Rod
