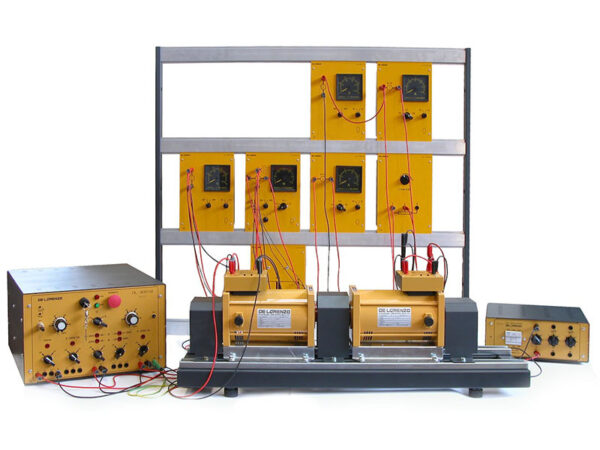

Modules For Study Of Electrical Measurements With Alternator

Model No. DL 2109TM

This System Studies The Topics Related With The Electric Measurements With Alternator.
It Has A Modular Structure And It Consists Of Didactic Panels Installed On A Vertical Frame.
The Modularity Of This Didactic System Grants To The Students A Direct And Immediate Approach To The Topic.

Offering The Opportunity To Study Various Subjects Performing Different Experiments As:
– Dc Current Measurement
– Ac Current Measurement
– Dc Voltage Measurement
– Ac Voltage Measurement
– Ohm’S Law
– Bridge Circuit
– Capacity Reactance
– Power In Dc Circuits
– Power In Single-Phase Circuits
– Pf Measurement In Single-Phase Circuits
– Inductive Reactance
– One-Wattmeter Method
– Two-Wattmeter Method
– Pf Measurement In Three-Phase Circuits
– Four-Reading Method
– Six-Pulse Bridge Circuit
– Synchronizing A Three-Phase Alternator

For more details download catalogue from here
