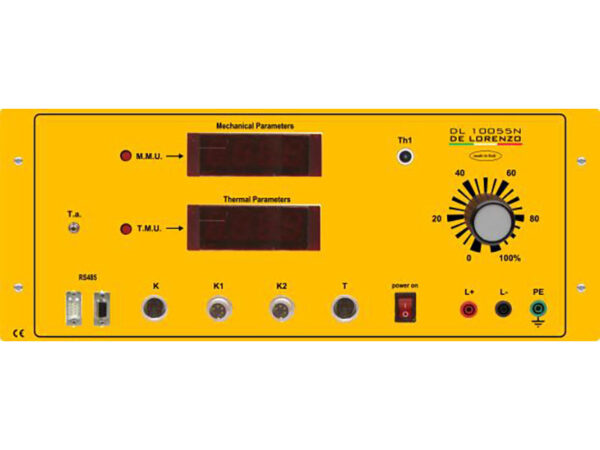

Mechanical Power Digital Measuring Unit

Model No. DL 10055N

For Direct Measurement Of Motor Output Torque Through Load Cell And Of Rotating Speed Through Optical Transducer, With Mechanical Power Display; Provided With Direct Current Variable Power Supply For The Excitation Of The Brakes Or Of The Dynamometer.
Digital Readout Of The Measured Quantities.
Connector For Overspeed Protection Of The Motors Through The Connection To The Power Supply Module.
Ambient Temperature Sensor And Probe For Measuring The Temperature Of The Motor.
Communication: Rs485 With Modbus Rtu Protocol.

Technical Features:
– Torque: Suitable For Measuring The Maximum Torque Of The Laboratory Through The Load Cell
– Speed: Suitable For Measuring The Maximum Speed Of The Machines Of The Laboratory
– Power: Suitable For Measuring The Maximum Power Of The Machines Of The Laboratory
– Dc Output: 0-220 V, 2 A
– Power Supply: Single-Phase From Mains

For more details download catalogue from here
