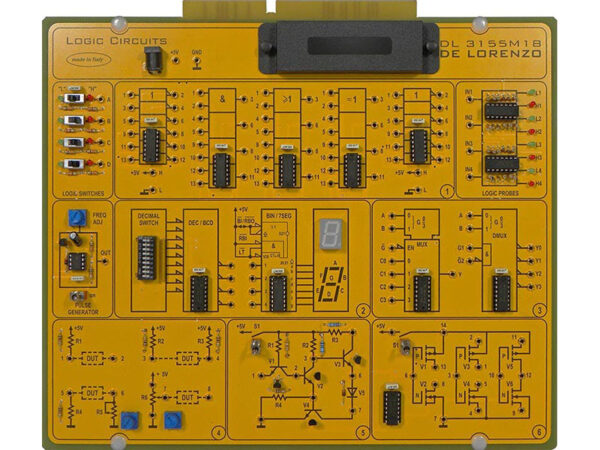

Logic Circuits

Model No. DL 3155M18

Theoretical Topics:
– Binary System
– Logic Functions
– The Algebraic Description Of The Logic Gates
– The Truth Tables
– The Theorems Of The Boolean Algebra
– Techniques For The Minimization Of The Logic Functions Through The Application Of The Theorems
– Fundamental Logic Operators
– Not, And And Or Logic Operators
– Use Of The And And Or Operators As Control Devices For The Transfer Of Logic Signals
– Or-Exclusive Logic Operator
– Classic Form Of A Function
– Graphic Representation Of The Functions
– And-Or-Not Function
– Nand And Nor Logic Operators
– Use Of The Nand And Nor Operators As Control Devices For The Transfer Of Logic Signals
– The Ttl Family
– The Cmos Family
– Characteristic Parameters Of The Logic Gates
– Definition And Characteristics Of A Combinatory Logic Network
– The Karnaugh’ Maps
– The Bcd Code
– Encoders, Decoders, Multiplexer, And Demultiplexer
– Fault Simulation

Circuit Blocks:
– Logic Gates, Boolean Algebra, Karnaugh’S Maps And Combinatory Networks
– Encoder And Decoder
– Multiplexer And Demultiplexer
– Electric Characteristics Of The Ttl
– Logic Gates
– The Ttl Logic Family
– The Cmos Logic Family

For more details download catalogue from here
