Local Area Network (Lan) And Internet

Model No. DL TC74

Objectives:
Training of an engineer for the installation and maintenance of Local Networks, capable of:
– knowing the principles, the standards, and the devices that are normally used in LANs
– installing LANs and Intranet in compliance with the current cabling standards
– installing the protocols and presetting the configurations on the network computers
– performing maintenance, troubleshooting, and tests on LANs

Educational Path:
The Educational Path of the Training Package covers the following subjects:
– Introduction to local networks What is a local network, Components of a local network, The transmission media, The structured wiring, Network topologies, Network protocols: OSI Model, Technologies and standards for the local networks, Network devices, and Network operating systems.
– Signal coding and transmission media Coding techniques, The transmission media, The coaxial cable, The telephone wire, The optical fibers.
– The OSI model and the protocols LAN IEEE The OSI reference model, OSI Model: Physical Level and Line Level, The project IEEE 802: Sublevel LLC, Sublevel MAC, and Physical Level.
– Networks: Ethernet, Fast Ethernet, and Gigabit Ethernet Standard Ethernet and IEEE 802.3, The sublevel MAC, CSMA-CD access method, the physical level, Ethernet: 10 Mbps (10 Base-T), Fast Ethernet: 100 Mbps, Gigabit Ethernet: 1000 Mbps
– Network devices The typical devices of Ethernet networks, Transceivers, Repeaters, Media converters, Hubs, and Switches.
– Structured wiring according to standard EIA/TIA 568A  ISO/IEC11801 What is the structured wiring, The wiring standards, Content and purpose of the standards, Topology of a structured wiring, Main elements and nomenclature, Horizontal wiring, Dorsal networks.
– Protocols: NetBIOS, NetBEUI, TCP/IP, IPX/SPX The protocols of levels 3, 4, 5, 6, 7, The interface NetBIOS, The protocol NetBEUI

Netware protocols: IPX/SPX, IPX protocol, SPX protocol, Internet protocols:
TCP/IP, IP protocol, TCP protocol.
– Intranet and diagnostics on the networks What is an Intranet, Terminal emulation, Files transfer, Electronic Mail, World
Wide Web, TCP/IP tools.
– Architecture of a Peer-to-Peer network Operating System General architecture, Redirector and File System, Support of multiple networks, NDIS architecture, TCP/IP architecture, Client and Server Peer architecture, Programming interfaces, Architecture, and serial communications.
– Architecture of a network Server Operating System General architecture, NDIS specifications, Network protocols, Transport Driver
Interface, Network services: Server, Network services: Workstation, Service DHCP, DNS and WINS.

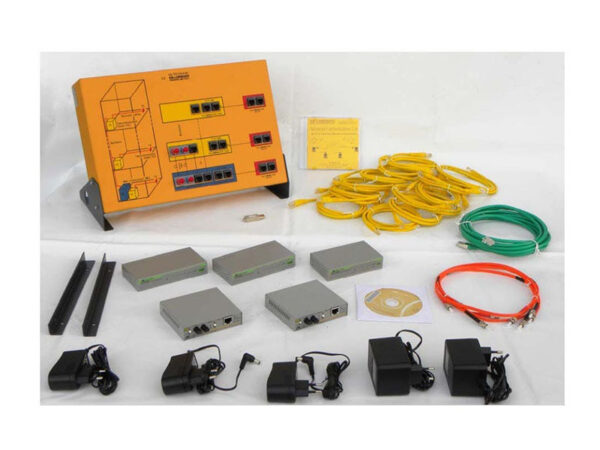

Composed of:
TC74-MC: LAN structured cabling
This module shows the structure of the cabling of the LAN according to the standard EIA/TIA 568A and ISO/IEC 11801.
It includes:
– Diagram of the structured cabling.
– Sockets RJ45 and for optical fiber.
– Patch panel Users’ sockets
– TC74-DS: Switching HUB (Quantity 3) IEEE 802.3, 802.3u compatible.
– Transmission speed: 10/100 Mb/s.
– 4 RJ45 ports.
– External power supply.
– TC74-DM: Media Converter (Quantity two)
– Conversion from RJ45 (10Base-T) to an optical fiber (10Base-FL).
– Connections: 1 x RJ45, 1 x ST (RX/TX).
– Compatibility with: cat. 3, 4, 5, optical fiber cable 62,5/125 ST.
– IEEE 802.3 compatible.

For more details download catalogue from here
