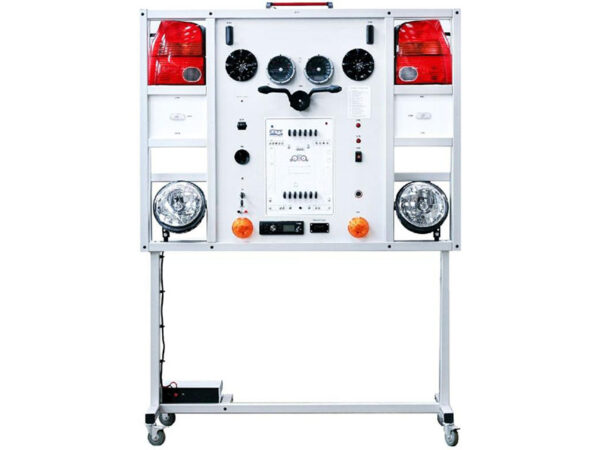

Lighting System Trainer

Model No. DL DM27

LEARNING EXPERIENCE
The training board simulator is a great educational tool that allows students to learn the structure of a lighting system, study its components, and perform various measurements, tests, and other diagnostic procedures.

MAIN CHARACTERISTICS
– The lighting system trainer is installed in a mobile aluminum frame and it is based on OEM components of VW/AUDI cars.
– The main characteristics and functions of the trainer Open contacts for measuring of system’s components and circuits.
– Electric wiring diagram with built-in banana plug jumpers for measurements and connecting or disconnecting the components.
– Diagnosis through OBD 16 – pin diagnostic connector diagnostic socket (Dashboard only) (OBD not supplied)
– Adjustable level with the motors of front headlights.

LIGHTING SYSTEM TRAINER ACCESSORIES
Suggested instruments for best practice:
– Oscilloscope (not included)
– Multimeter (not included)
– OBD (not included)
