Lighting Installations

Model No. DL 2101A

Kit of components with experiment manual with 10 experiments including brief theoretical mentions and practical diagrams of the main circuits that are used in lighting installations for civil buildings.
Each experiment has a well-defined target and shows the electric diagram and the material that is necessary for assembling the installation.

The kit is composed of:

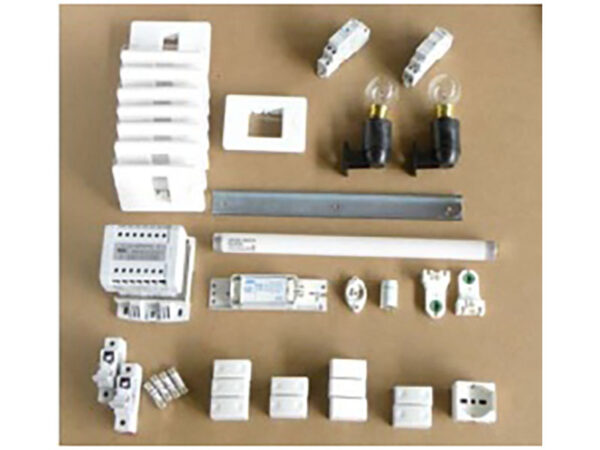

3 general purpose pushbuttons, 3 switches, 2 change-over switches, 2 reversing switches, 1 mains socket, 2 fuse holders complete with fuses, 1 stairs light timing relay, 1 pulse relay, 2 lamp holders complete with incandescent lamps, 1 fluorescent lamp complete with lamp holder, starter and choke, 1 transformer mains/2x12V, 1 piece of DIN section, 1 set of screws to fix the components, 1 container.

With this kit it is possible to perform the following experiments:
– Single-point controlled lighting system
– Single-point controlled lighting system with socket
– Switch-controlled two-lamps lighting system
– Two-point controlled lighting system
– Three-point controlled lighting system
– Four-point controlled lighting system
– Circuit breaking-relay controlled lighting system
– Switching-relay controlled lighting system
– Time-relay controlled lighting system
– Hot cathode fluorescent lamp system

For more details download catalogue from here
