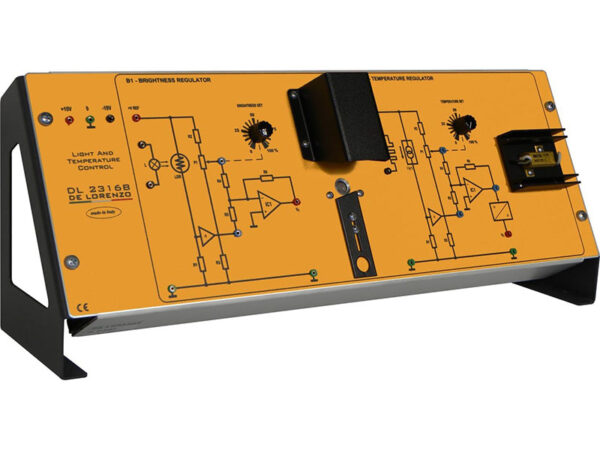

Model No. DL 2316B
– This Board Contains Two Independent Systems, For The Control Of The Light And Of The Temperature Respectively, Each One Complete With a Reference Block, Error Amplifi Er, Transducer, And Actuator.
– Together With The Dl 2316A Board, That Contains The Power Circuits Complete With Relevant Piloting, It Is Possible To Realize An Open And Closed Loop Control for Both Of The Lighting System (24V, 15W Lamp, And Photoresistor) And Of The Heating System (47, 25W Heating Element And Integrated Circuit Sensor).
– The Board Is Supplied Complete With A Set Of Stackable, Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual.
– Power Supply: ± 15Vdc, 100Ma
Experiments
– Dc Operated Lamp
– Ac Operated Lamp
– Full-Wave Triac Control
– Proportional Control
For more details download catalogue from here
