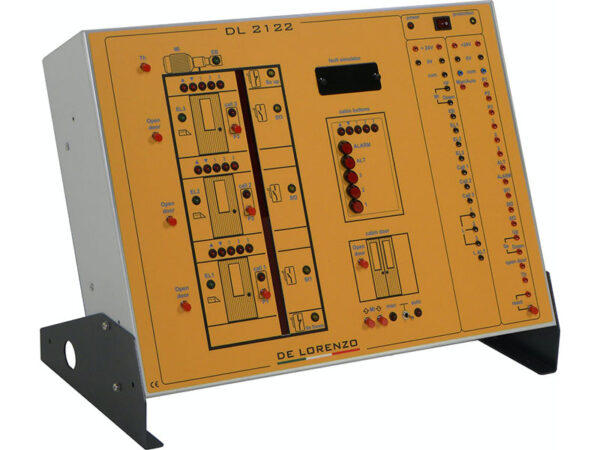

Lift Simulator V1

Model No. DL 2122

– The simulation board is a three-stop lift with real processing procedures.
– Lift car up-down manual cycle with automatic PLC control and management.
– The lift car motion is displayed by LED bar-graph while the floor and safety limit switches are displayed by LED.
– Booking to be effected through buttons with fl ash signaling, on priority basis and independently from the lift car position.
– Lift car and floor door open-shut button simulators. Motor thermal relay button simulator. LED signaling for the activation of the electromagnetic brake of the lift car motor and for floor door opening.
– Reproduction of the inside lift car switch panel: booking by lighting buttons, STOP and ALARM buttons.
– At each floor and on the lift car panel the lift car position and the up-down indication are displayed by LED.
– Fault simulator by micro-switches.
– Connection to PLC through terminals or connectors.
– Power supply: single-phase from mains.
– Complete with educational manual and control software.
– NOTE: It can be connected to a PLC such as the DL 2210A or the DL 2210B.
