Kit For The Study Of Photovoltaic Solar Energy

Model No. DL 3155BRS-PSE

Composed of:
– Sub-module (2 off) with a photovoltaic solar cell, for exercises with cells in both series and parallel configuration.
– Sub-module with multifunction display, for the visualization of the measurements.
– Sub-module with charge regulator, that can be connected to an external solar panel and to the battery.
– Sub-module with a breadboard, for the realization of circuits with components such as photodiodes.
– Sub-module with battery controller to control the charge of the battery (it includes the external battery).

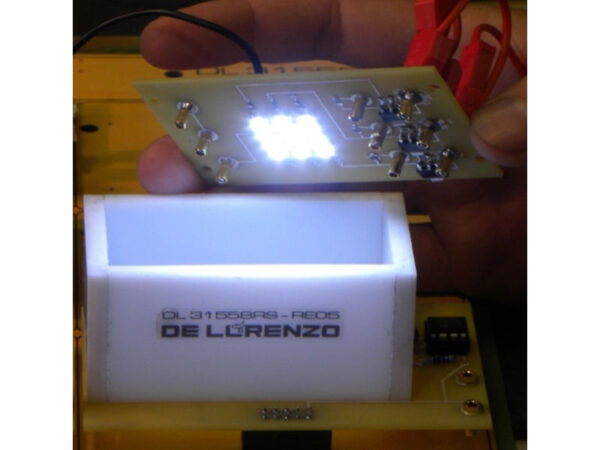

– Sub-module for comparing the efficiency of different light sources; it includes a light sensor, incandescent lamps and LED.
– Sub-module with voltage regulators.
– Sub-module with current regulator and relay circuit, to switch between battery and power supply when the battery is out of charge.
– Solar panel, 5W
– Small fan (load)
– DL 3155BRS development module
– Power supply
– The kit is complete with theoretical and experiment manual.

Option:
– DL SL1: Spot light for the solar cells and the solar panel
– Necessary instrumentation: Multimeter

For more details download catalogue from here
