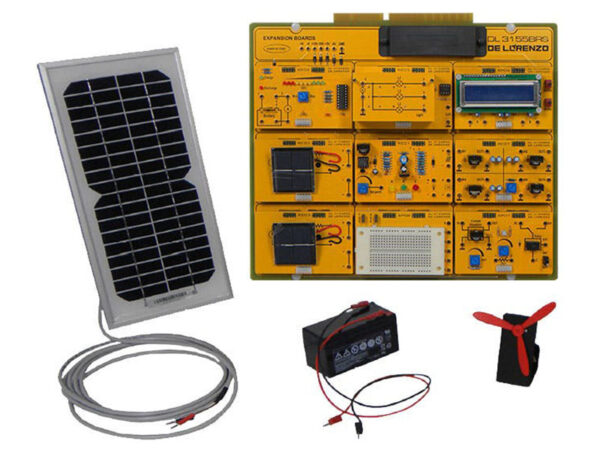

Kit For The Study Of Photovoltaic Solar Energy

Model No. DL 3155BRS-PSE

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.
The kit is a complete configuration for photovoltaic energy study in an off-grid system.
It covers the fundamentals of solar cells and their operation in a storage system mode.

LEARNING EXPERIENCES
– Electrical characteristics of a single solar cell
– Electrical characteristics of two solar cells connected in series
– Electrical characteristics of two solar cells connected in parallel
– Electrical characteristics of a solar panel
– Monitoring of the charge level and analysis of the discharging process in a gel battery
– Charging a battery by using a current regulator
– Charging a battery by using a charge regulator
– Analysis and comparison of two light sources
– Smart energy management system
– Study of energetic efficiency by means of a breadboard

CIRCUIT BLOCKS
– Base board
– Solar cell mini board x2
– Battery charge regulator mini board
– Double voltmeter mini board
– Voltage regulators mini board
– Battery-level monitor mini board
– Light Tester mini board Kit
– Current driver and relay mini board
– Bread Board mini board
– Battery module (12V)
– Solar panel module 5W
– Fan module (load)

For more details download catalogue from here
