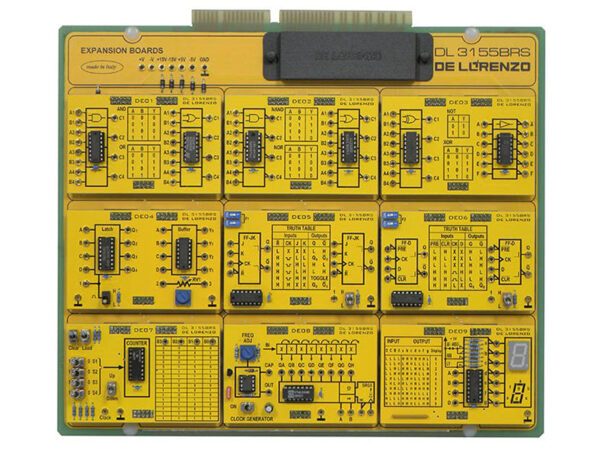

Kit for The Study of Digital Electronics

Model No. DL 3155BRS–BDE

Composed of:
– Sub-module with 4 AND gates and 4 OR gates
– Sub-module with 4 NAND gates and 4 NOR gates
– Sub-module with 4 EXOR gates and 6 NOT gates
– Sub-module with latch & buffer circuit
– Sub-module with Flip-Flop JK Master Slave
– Sub-module with Flip-Flop D Master Slave
– Sub-module with up/down counter
– Sub-module with shift register
– Sub-module with 7 segment display
– Sub-module with multiplexer and demultiplexer
– Sub-module with oscillators
– Sub-module with 555 timer circuit
– Sub-module with input/output digital probes
– DL 3155BRS development module
– Power supply
– Suggested instrumentation: multimeter, oscilloscope
– The kit is complete with theoretical and experiment manual.

For more details download catalogue from here
