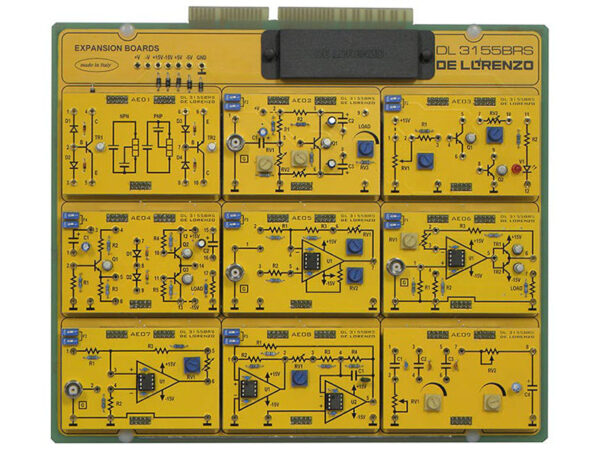

Kit For The Study Of Analogue Electronics

Model No. DL 3155BRS-BAE

Composed of:
– Sub-module with BJT analysis of basic concepts
– Sub-module with BJT amplifier configuration
– Sub-module with BJT – Darlington configuration
– Sub-module with class A and class AB push-pull circuits
– Sub-module with operational amplifier
– Sub-module with power operational amplifier
– Sub-module with Schmitt trigger
– Sub-module with square/triangular waveforms generator
– Sub-module with 1st order high-pass/low-pass passive filters
– Sub-module with 1st order high-pass/low-pass active filers (operational amplifier differentiator and integrator)
– Sub-module with 2nd order high-pass/low-pass active filters
– Sub-module with JFET
– DL 3155BRS development module
– Power supply
– Necessary instrumentation: multimeter, function generator, oscilloscope
– The kit is complete with a theoretical and experiment manual.
