Kit For The Study Of A Warehouse Management System

Model No. DL WMS-SIM

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.
With this training system, students can learn about the properties of a semi-automatic warehouse that can be found in industrial environments.
Sensors and actuators are included to develop a complete course on the main features of a semi-automatic warehouse and its management.
The student will be able to interact with the hardware in a simple and intuitive way through a CAI software that explains step by step how the system works.

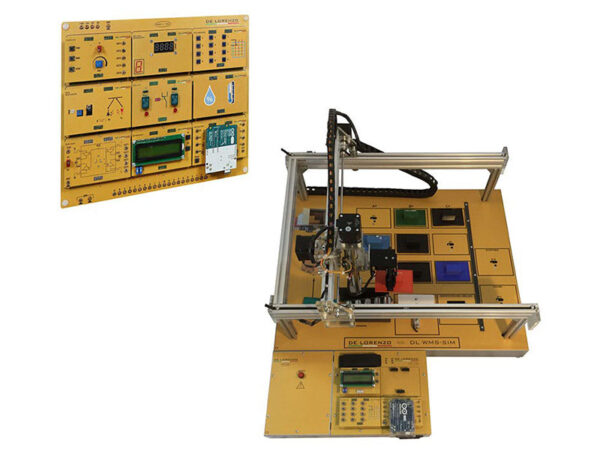

The trainer for the study of a warehouse management system is composed of two main elements:
– A boards kit to study the hardware characteristics and the control techniques used in a semi-automatic warehouse.
– The secondary boards include all the components, sensors and actuators needed to understand and manage the operation of a semi-automatic warehouse.
– Real hardware simulator of a semi-automatic warehouse used in a real industrial environment.
– Through this simulator, the student can learn how to operate and manage a semi-automatic warehouse.
– Its structure allows the connection of the board kit components, making them compatible with each other.

TECHNICAL FEATURES
– Power supply: 90V-230V ±10%, 50/60Hz
– Horizontal warehouse divided into zones:
– 1 position for parts acceptance
– 1 position for discarded parts
– 9 positions for storage
– 1 position for product identification
– 1 position for product weighing
– 1 position for product expedition
– 3-axis Cartesian robot consisting of:
– 3 Stepper motor linear actuators
– Nominal voltage: 12Vdc
– 1 gripper with servo motor
– Control box including:
– Motor drivers.
– Slots to insert system sub-boards.
– Compatible with Arduino UNO boards:
– ATMEGA328 Processor
– 32KB flash memory
– 1KB EEPROM memory
– 2KB SRAM memory
– 23 general purpose I/O ports
– IR position sensors
– Strain gauge weighing sensor: weigh up to 1Kg with a 5g resolution.
– RFID detector
