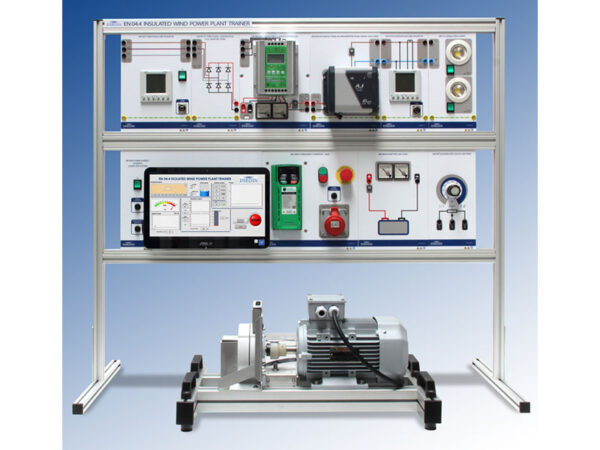

Model No. EN 04.4
With the EN 04.4 equipment, we emulated the behavior of a wind turbine in a practical and didactic way. An electric motor acts as the blades and bush of a wind turbine, dragging a three-phase synchronous generator of permanent magnets, which transforms the mechanical energy is transmitted to the shaft into electrical energy at the output.
The current generated is alternating three-phase, having to transform into direct current to be able to feed the regulator of charge of batteries and consumptions, and later to the inverter that in turn turns this into alternating current with the appropriate frequency, in our case 50 Hz So that the generated electric energy can be stored in batteries or consumed directly, or also use the stored charge for consumption when is no wind.
The equipment is designed to understood in a very visual and intuitive way quickly the operation of the assembly, not only knowing the elements of which it consists, but having them also to connect by means of the security cables supplied for that purpose.
This is achieved by arranging the equipment in schematic and connectable panels.
In addition it counts on a computer from which we control the operation of the equipment and we obtain the reading of all the necessary variables for the analysis of the system.
For more details download catalogue from here
