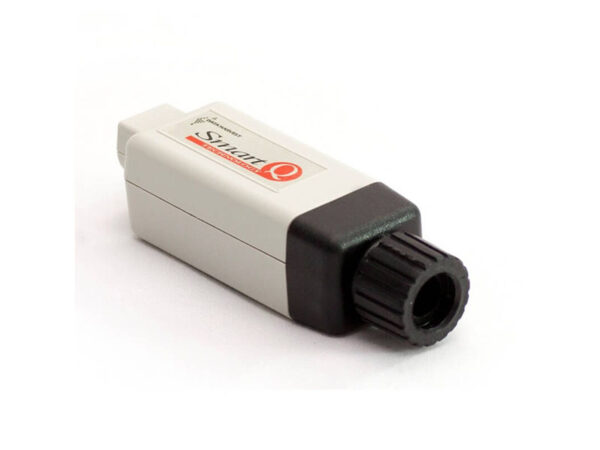

Infrared Sensor

Model No. 3278

The Infrared Sensor adds another dimension to heat loss and energy transfer experiments.
This multi-range sensor detects the energy from radiant sources from ultraviolet to far infrared.

Specification
– Ranges: 2, Radiance & Irradiance
– Radiance:
0 to 30 W/m2 sr-1 (Resolution: 0.02 W/m2 sr-1)
0 to 300 W/m2 sr-1 (Resolution: 0.2 W/m2 sr-1)
0 to 3000 W/m2 sr-1 (Resolution: 2 W/m2 sr-1)
– Irradiance:
0 to 20 W/m2 (Resolution: 0.01 W/m2)
0 to 200 W/m2 (Resolution: 0.1 W/m2)
0 to 2000 W/m2 (Resolution: 1 W/m2)

What’s in the box
– 1x Infrared Sensor

For more details download catalogue from here
