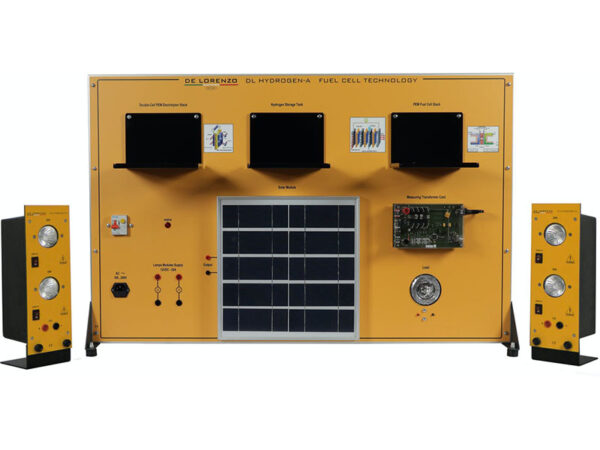

Model No. DL HYDROGEN-A
Trainer for the theoreticalpractical study of the hydrogen based fuel cells energy.
Complete with connecting cables, experiment manual and software for data acquisition and display.
TRAINING OBJECTIVES
– Study of a fuel cell stack up to ten cells
– Producing and storing hydrogen
– Determining characteristic curve of solar panel
– Voltage controlled automatic measurements
– Determining characteristic curve of electrolyser
– Learning about Faraday’s laws
– Determining characteristic curves of fuel cell
– Determining fuel cell efficiency
– Determining decomposition voltage of water
– Long-term measurements at your own PC
– Fixing the output at different operating points of the fuel cell stack
– Monitoring single cell stack voltages at your PC
– Power-controlled automatic measurements
TECHNICAL SPECIFICATIONS
The trainer includes: PEM fuel cell stack 10 (ten cells), electrolyser, power supply, fuel cell monitor software, hydrogen storage tank, electric load (lamp), fan, solar module and 2 modules with lamps for the solar panel.
– Electrolyser: 15 W
– Fuel cell
– Power per cell: 200 mW
– Power (10 cells): 2 W
– Solar module: 4 V / 3,3 A
– Gas storage: 80 cm3
– Lamp: 4.4 W
– Power supply: 6 Vdc / 3 A
– Monitoring software
The following accessories are also included: water bottle (with distilled water), protective goggles, silicone tubing and textbook.
For more details download catalogue from here
