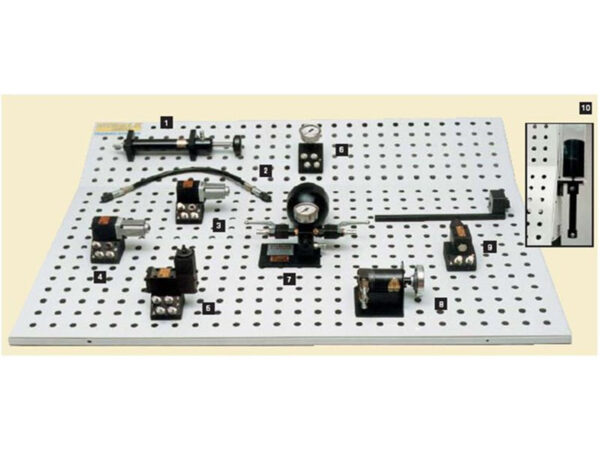

Hydraulic Level 2

Model No. 53952016

– 2 4 Connections distributor on manifold with pressure gauge 0 .. 100 bar. Glycerine damped.
– 1 Pressure reducing valve. 3 ways. 2 ..125 bar. Onto base plate.
– 1 Pressure relief valve with spool and camping. 2…125 bar.
– 1 Pressure relief valve with spool, piloted. 2…125bar.
– 1 Hydraulic motor. Gerotor suystem. With shaft wheel. 12,5 cm3/rev.
– 1 Double actino cylinder, 32 / 16 x 200mm stroke.
– 1 2/2 valve, ball actutated, spring return. With acting cam for 32 cylinder rod
– 1 Counter-weight 30 Kg. To be fixed on one of the trolley sides. It includes a double effect cylinder 20 / 12, 150 mm stroke in order to make traction-compression exercises Transparent protection screen.
– 1 Hydraulic diaphragm accumulator with T.U.V. safety certificate. 2 manual valves and a relief security valve. Volume: 0,7 dm3. Nitrogen pressure 40 bar.
– 1 Set of 10 hoses with quick female connectors. 8 hose NW 6×500 mm length and 2 hoses NW 6×1000 mm length.

Every valve size will be NW6 – Cetop 3.
Every hydraulic connection will use anti-leakage quick-fit ecologic connectors
Every component will be suitable for working on panels with 17 mm holes every 50mm (horizontally and vertically).

For more details download catalogue from here
