Hybrid Solar / Wind Energy Trainer

Model No. DL SUN-WIND24V & DL SUN-WIND12V

The main target of a hybrid powersystem is to combine multiple sources to deliver non-intermittent electric power, trying to take advantage of multiple available renewable energies. Complete with connecting cables, experiment manual and software for data acquisition and processing.

GENERAL FEATURES

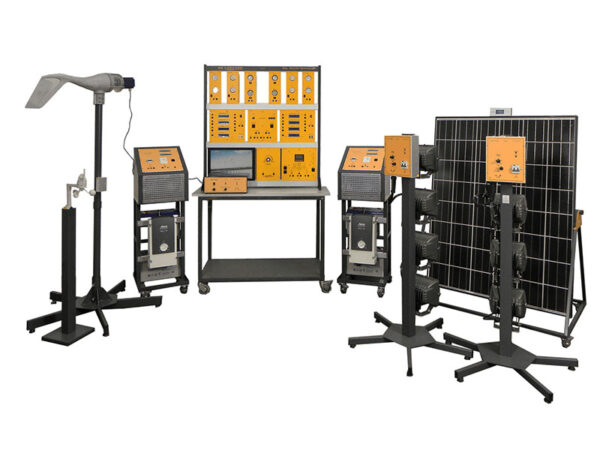

The Trainer is composed of two sub-systems, one for the generation of electric energy from solar photovoltaic energy through a solar panel and the other for the generation of electric energy from wind energy through a wind turbine.
In this trainer, one of the two inverters, acting as master, synchronizes the frequency of the second inverter, acting as slave, to
allow creating a connection between the two outputs that operate as a single line with double available power.

TRAINING OBJECTIVES
Solar energy:
– Measurement of solar irradiation
– Measurement of the voltage of the photovoltaic panel at no-load
– Measurement of the short circuit current of the
photovoltaic module:
– Graph of current – voltage of the photovoltaic panel
– Measurement of voltage and current of the panel in overload
– Regulation and charge of the battery
– DC solar plant
– AC intsallation
Wind energy:
– Activating the braking action
– Regulating and charging the battery
– DC wind installation
– AC installation: standby function investigation
Hybrid system:
– Low voltage parallel connected, AC separated
– Low voltage separated, AC parallel connected
– Low voltage and AC parallel connected
