Model No. DL DKC031

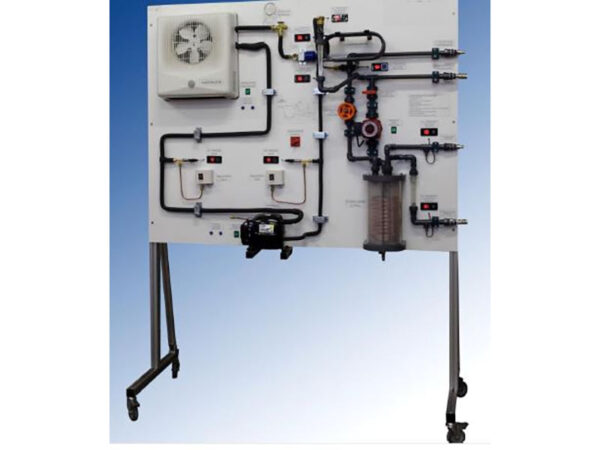

The system can clearly demonstrate the operation of a heat pump air/water.
The system consists of:
compressor, circulation pump, flow control valve, accumulator tank, condenser, filter/drier, expansion valve and evaporator fan, water flow meters, temperature and pressure sensors with display in strategic points of the circuit.
TRAINING OBJECTIVES
– Study of the operation of a heat pump.
– Study of the main components of the heat pump.
– Representation of reversible thermodynamic processes.
– Monitoring temperatures and pressures in the process.
– Use of accumulated heat.
– Energy balances:
– Open circuit.
– Closed circuit.
TECHNICAL DATA
– Compressor: output power 400W.
– Condenser: tubular heat exchanger.
– Fin evaporator fan.
– Hot water circulation through recirculation pump.
– Hot water storage tank with internal heat exchanger, capacity: 5.5l
For more details download catalogue from here
