Heat Pump Air-Conditioning System

Model No. DL TM08

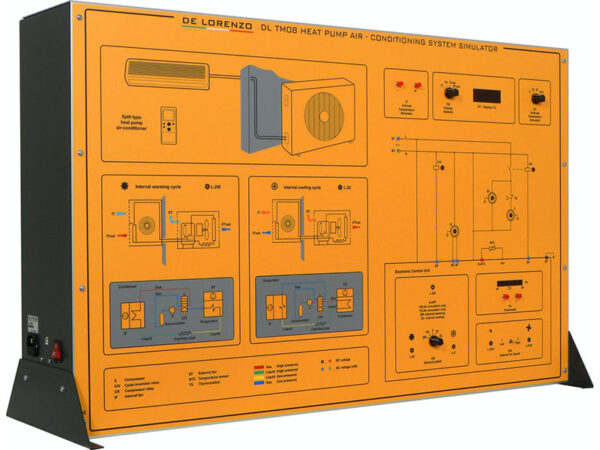

The simulator allows the study, the performing of experiments and the troubleshooting for the following system:
– Fixed air conditioner, split type, with air air heating pump, for cooling an heating the ambient.
– This system is reproduced on the panel,through a colour representation which allows a complete analysis of the fluid circuit, of its components and of the electrical/electronic circuit for control and regulation.

TECHNICAL DESCRIPTION
The fixed air conditioner, split type, with air eating pump, for cooling and heating the ambient is composed of the following main elements:
– Single phase motor compressor
– Condenser/evaporator with ventilation through single-phase electric motor
– Evaporator/condenser with ventilation through single-phase electric motor
– Two expansion thermostatic valves
– Two single direction valves for by pass circuits
– Monostable electro valve for inversion of the refrigerating cycle
– Liquid tank
– Regulation thermostat
– Internal fan speed selector
– Main switch
– Cooling/heating selector
– Possibility to simulate the internal and external temperatures
– Possibility to display the temperature values of the treated air

For more details download catalogue from here
