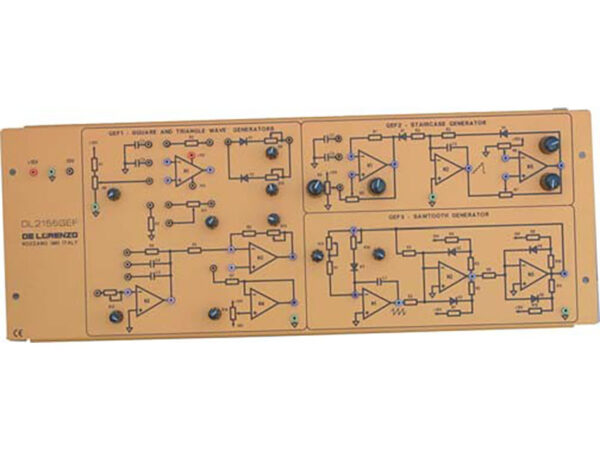

Model No. DL 2155GEF
The Board Allows To Perform Functional Checking Of The Simplest And Most Popular Square Wave Generators, Pulse Generators, Triangular Wave Generators, Saw Tooth Generators, And Step Generators.
All Generators Are Realized With Operational Amplifiers.
For Some Generators, Circuital Arrangements Have Been Used To Allow Adjustment Of Output Signal Frequency, Duty-Cycle, Slope, And Offset.
It Is Therefore Possible To Perform An In-Depth Study Of the Increasing Difficulty And Complexity Level Of The Function Generator Circuits.
The Board Is Supplied Complete With A Set Of Stackable, Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: ± 15 Vdc, 750 Ma
Experiments:
– Analysis Of Square Wave And Pulse Generators With Variable Duty-Cycle
– Analysis Of Square Wave And Triangular Wave Generators, With Frequency, Amplitude And Offset Adjustment
– Analysis Of Step Wave Generators
– Analysis Of Saw-Tooth Wave Generators
