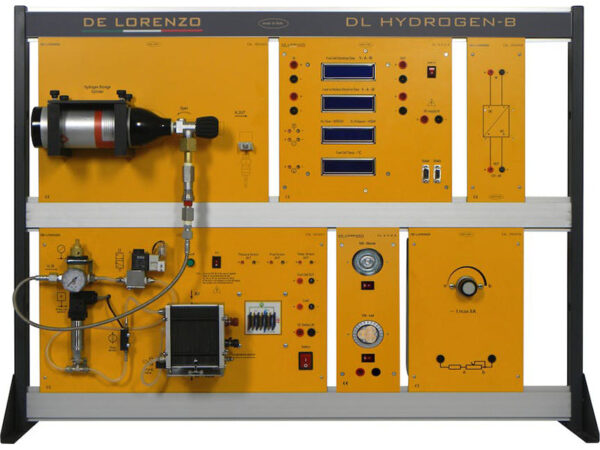

Fuel Cells Systems Trainer

Model No. DL HYDROGEN-B

This trainer has been designed for the study of fuel cell systems. It teaches their engineering principles and it allows performing a set of experiments for educational purposes.
It is safe and easy to be operated.
Complete with connecting cables, experiment manual and software for data acquisition and processing.

TRAINING OBJECTIVES
The  trainer  is  very  flexible,  modular  and  suitable  for  the understanding of basic principles as well as more complex technology concepts.

It allows performing the following experiments:
– Familiarize yourself with the trainer
– Performance of the PEM Fuel Cell with fixed loads, without DC/DC converter
– Performance of the PEM Fuel Cell with fixed loads, with DC/DC Converter
– Recording of the current/voltage characteristic curve of the PEM Fuel Cell with variable load
– Calculation of the energy efficiency of the PEM Fuel Cell

TECHNICAL SPECIFICATIONS
The trainer includes the following modules:
– 100 W PEM fuel cell. Performance: 14 V at 7.2 A.
– Consumption of H2: 1.4 l/min. it includes the electronic controller.
– 225 Nl aluminum storage canister
– DC/DC converter, output 12 V, 8 A
– Load, with one halogen lamp, 12 V, 50 W, and one LED lamp, 12 V, 3 x 1 W
– Variable logarithmic rheostat, 1.5 Ohm ÷ 17 Ohm, 100 W, Imax = 8 A
– Battery
– Instruments module, containing 4 multifunction meters and 4 LCD

For more details download catalogue from here
