Frame Study

Model No. ST 01.2

The objective of this equipment consists on the study of the deformation in the plane, of frame-type structures under the action of solicitations.

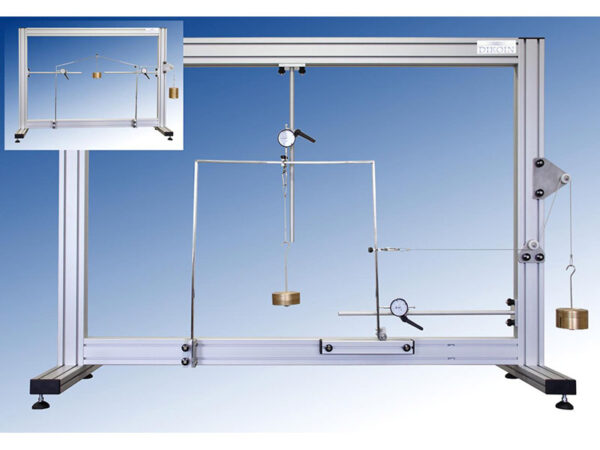

The equipment is supplied with a gantry in U and another with a gable roof.

The equipment has a characteristic system of embedding and sliding articulated support.

The recorded deformation is extracted from the system by 2 comparator clocks that are placed at any point on the frame.

These deformations are the response of the system to the different loads applied.

The loading of the structure is achieved through 2 load systems with weights, whose maximum load is 12 kg, having weights of different masses, from 0.5 to 2.5 kg.
