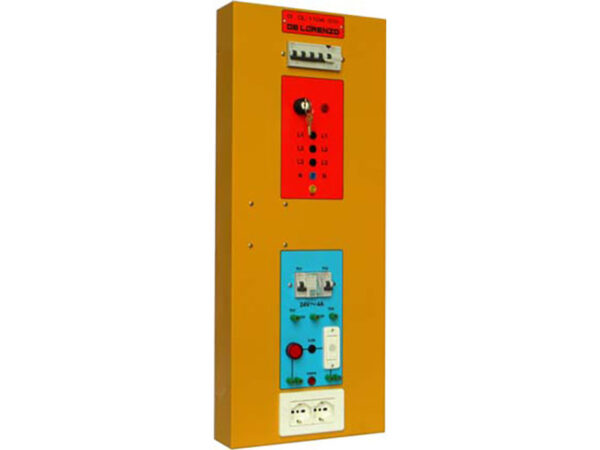

Four Place Work Bench With 2 Independent Supplies

Model No. DL 1104

For each side the following power supplies are provided:
– 1 three-phase + N + T, 16A output on 36A safety terminals according to IEC 61010-1; protection through the differential, magneto thermal, 4-pole, 16A automatic switch, pilot lamp and key switch for teacher control.
– 2 outputs on 10/16 A single-phase mains sockets, protection through the differential, magneto-thermal,16A automatic switch, and pilot lamp.
– 1 output isolated from the mains, 0-12-24Vac, 4 A on isolated terminals, protection through the magneto-thermal, automatic switch.
– 1 optical and acoustic circuit tester on isolated terminals, protection through fuses.
– Dimensions: 200x80x175 cm.
– Height from ground to work surface: 90 cm.

For more details download catalogue from here
