Model No. FL 16.1

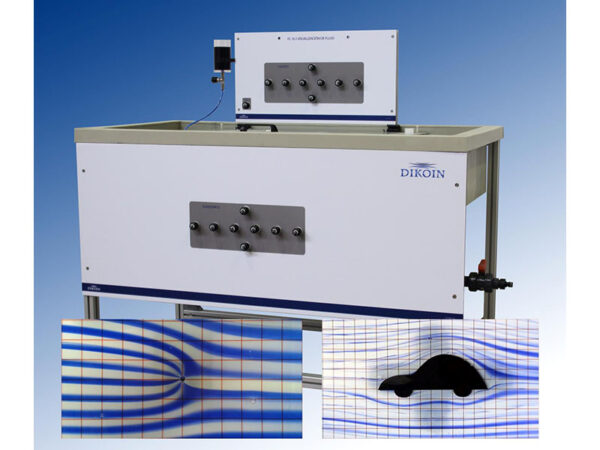

The flow visualization table allows to study the flow behaviour through different objects by flow lines, besides being able to simulate sources and sinks.
Upstream, the ink is supplied through needles generating current lines. The ink flow is controlled by a regulating valve.
Handeling the needle valves, we can introduce in the current sinks (points where water leaves the stream), sources (points where water enters the stream) or a combination of both.
Different models are supplied with the equipment: car profile, aerodynamic profile, circle, rectangle, square, teardrop, etc., with which we can clearly see the flow of current lines passing aroung these.
For more details download catalogue from here
