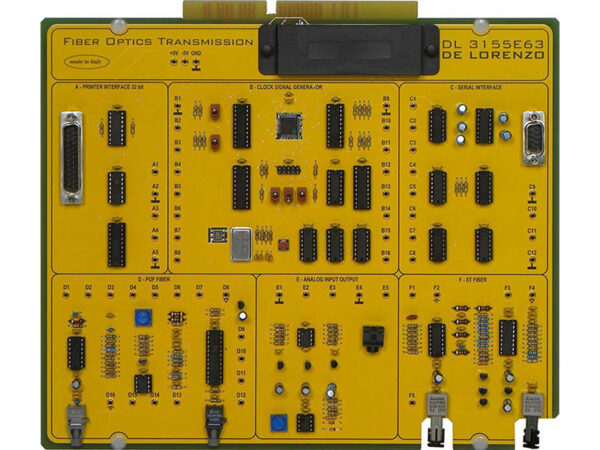

Fibre Optics

Model No. DL 3155E63

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.
With this board the students can study the operating principle of the communications through the use of the optical fiber analyzing the distortion characteristics and the quality of the transmitted signals.

THEORETICAL TOPICS
-Introduction to fibre optics communication
-Attenuation
-Numerical openings
-Propagation methods
-Transmitted power specifications
-Chromatic and modal dispersion
-Cable attenuation specifications
-Received power specifications
-Time division (TDM) and wave length division(WDM) transmission

CIRCUIT BLOCKS
-Clock signal generation
-Serial interface
-ST fibre
-Analogue input / output
-POF fibre
-Printer interface
-Complete with theoretical and practical manual.
