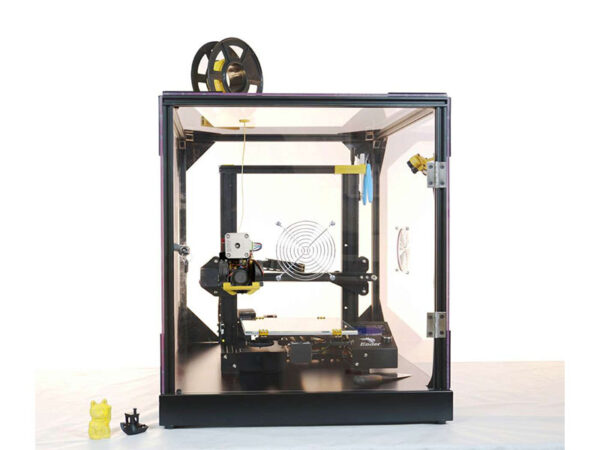

Fabrication Laboratory

Model No. DL FABLAB

De Lorenzo offers the best possible educational experience.
The system allows not only the use of the 3D printer but also the creation of models based on particular needs.
The didactic material proposed by De Lorenzo consists of a comprehensive manual that covers the concepts of 3D modeling and a series of explanatory videos for a clearer presentation of the basic concepts.

The topics included in the teaching material are listed below:
1. INTRODUCTION
– Unpacking
– Preliminary checks
– Precautions
2. SET-UP
– Regulation of the sliding blocks (video)
– Filament insertion (video)
– Leveling the print bed (video)
– Preparation of the print bed
3. PRINTING AN OBJECT
– Imagination and creation of an object
– Preparation of a simple model in Sketchup (video)
– Using the rulers
– From 2-D to 3-D
– Designing screw holes
– Smoothing the edges of an object
– Importance of measurements and tolerances
– Cleaning-up the object before exporting
– Importing and setting-up in the slicer
– Establishing printing speed and resolution
– Filling up and outer thickness
– Model orientation for printing optimization
– Preparation of a more complex model with joints in Sketchup (video)
– Evaluating friction and elasticity
– Variation of tolerances between the printed and coupled objects
– Mechanical factors of the objects
– Preparing the object to be exported
– Importing and setting-up in the slicer Cura
– Placing multiple objects on the print bed
– Identifying the most appropriate pint profile
– Generation of the supports
– Resistance of the object based on print orientation
– Uploading and copying the file for printing
– Preparation of the printing plane
– Precautions for more efficient printing
4. MAINTENANCE
– Checking the sliding blocks
– Checking the print bed
– Filament replacement (video)
– Cleaning and replacing the nozzle (video)
– PTFE tube replacement
– Silicone cover replacement
– Fan replacement
– Printing of the spare parts

TECHNICAL FEATURES
– Frame: made of precise and high-quality aluminum extrusion
– Printing technology: FDM (Fused Deposition Moulding)
– Pint-size: 220 * 220 * 250mm
– Print speed: 180mm / s, normal 30-60mm / s
– Precision: ± 0.1 mm
– Layer thickness: 0.1mm-0.4mm
– Nozzle diameter: standard 0.4 mm, supports 0,2,0,3 mm, etc.
– Nozzle number: 1
– Print bed temperature – 110 °C
– Print mode: online or offline SD card
– File format: STL, obj, amf
– Filament: PLA, ABS, Wood, TPU, shaded color, carbon fiber, etc.
– Filament diameter: 1.75 mm
– Software Slicer: Cura
