Engine Control System M 3.8.X Motronic Trainer

Model No. DL DM35

LEARNING EXPERIENCE

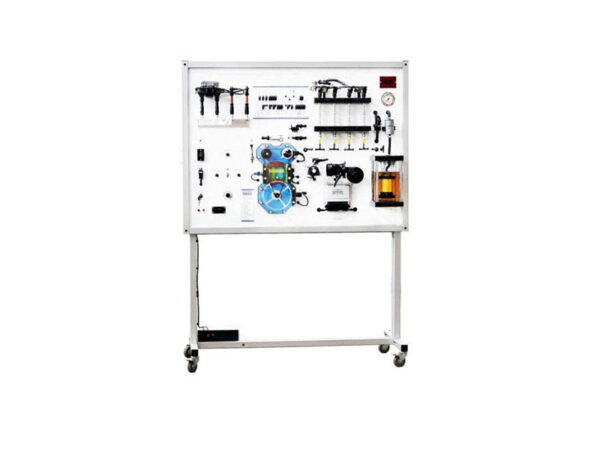

This demonstration panel represents the multipoint petrol injection (MPI) system MOTRONIC M 3.8.X. Integrated engine control system shows different operation modes of the fuel injection/ignition system and the trainer is based on OEM components of Audi/VW.

MAIN CHARACTERISTICS
The main characteristics and functions of the trainer are:
-Integrated engine control system with multipoint
-petrol injection system (MPI).
-Visible work process of spark plugs.
-Easy access for high voltage measurements.
-Manual adjustment of the engine crankshaft speed.
-Monitoring operation of fuel supply system,
-injected fuel quantity, spray pattern quality, fuel pressure of the fuel pump.
-Built-in fuel pump in a transparent tank which allows to see its operation;
-Possibility to change the air/fuel mixture by the oxygen sensor signal simulator.
-Adjustable airflow rate simulator allows to demonstrate a work of mass-air flow meter and
-air temperature sensor.
-Complete electric wiring diagram of multipoint petrol injection system (MPI).
-Electric wiring diagram with built-in banana plug
-jumpers for measurements and simulation of system fault codes.

The trainer has the following diagnostic and measurement features:
-Control unit diagnosis
-Control unit encoding/configuration
-Reading/erasing fault codes
-Diagnosis through OBD 16 – pin diagnostic connector
-Electronic control unit (ECU) identification
-Displaying the operating system parameters (live data)
-Activating the actuators (depending on the control unit)
-Throttle valve adaptation
-Possibility to measure the parameters of the System
-connecting to the banana connector (oscilloscope and multimeter are required)
-Possibility to measure electrical signal parameters of
-each system component (such as sensor or actuator) (oscilloscope and multimeter are required)
-Possibility to measure high voltage circuit of the ignition system (oscilloscope and multimeter are required)

ACCESSORIES
-Oscilloscope (Not included)
-Multimeter (Not included)
-OBD (Not included)
-Possibility to simulate more than 20 faults by disconnecting banana plug jumpers.
