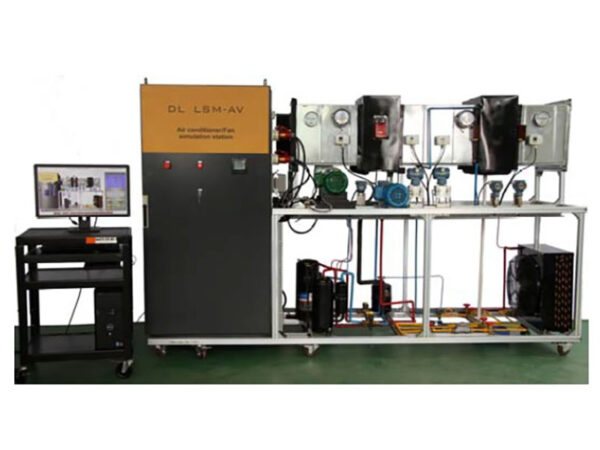

Energy Efficiency Air Conditioner/Fan Trainer

Model No. DL LSM-AV

This trainer has been developed to simulate a large number of operating conditions of the most common installations using air
conditioners and fans.
It allows studying the energy efficiency of the system as a function of different operating conditions and different components.
Complete with experiment manual and software.

TRAINING OBJECTIVES
– To prepare the professionals with knowledge and attitude for rational use of energy.
– To evaluate the aspects related to the energy efficiency in industrial consumers.
– To get knowledge to reduce the electrical power wastes.
– To get knowledge to reduce costs and investments in this field.
– To experiment equipment, instruments and technologies that are currently used in the industrial plants.
– To evaluate the possibility of energy savings associated to electrical motor systems.

TECHNICAL FEATURES
The trainer is composed of the following main components:
– A workbench, complete with loads, motors and data acquisition systems.
– A control panel, with all the electric and electronic components arranged in an ergonomic way.
– An auxiliary table for PC, bench?top instruments and equipment like oscilloscope, multi meters, etc.
– 2 Motors (conventional and high efficiency, 1.5 HP).
– Load module.
– Motors driving systems: frequency inverter, soft?starter, contactor.
– Driving system and protection elements such as: circuit breakers, regulators, switches, keys, lights.
– Measurement system for complete power parameters.
– Mechanical measurement transducers.
– Programmable Logic Controller (PLC).
– SCADA Software for supervision and data acquisition.

For more details download catalogue from here
