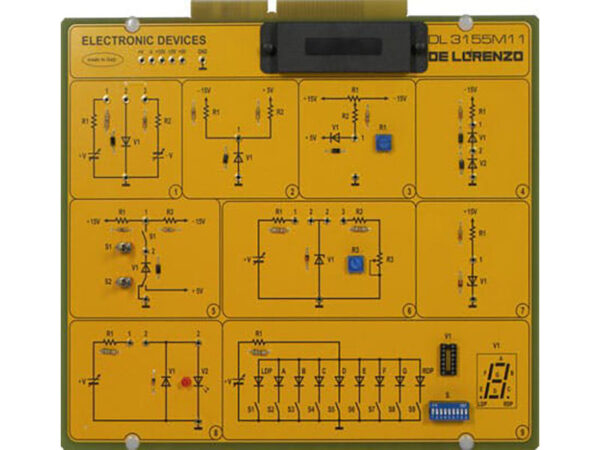

Model No. DL 3155M11
Theoretical Topics:
– Physics Of The Semiconductors And Joint P?N
– Semi Conductive Material
– Formation Of A Joint P?N
– Polarization Of A Joint P?N
– The Ideal Diode And The Real Diode
– Diode In Dc Circuits
– Check Of The Integrity Of A Diode Through An Ohmmeter
– Direct Polarization
– I nverse Polarization
– The Zener Diode
– The Diode As Stabilizer
– The Led Diode
– Fault Simulation
Circuit Blocks:
– Direct And Inverse Polarization Of A Diode
– Voltage At The Diode Ends
– Minimum And Maximum Voltages
– Minimum And Maximum Voltages
– With Series Connected Diodes
– Characteristics Of The Zener Diode
– Zener Diode As A Voltage Stabilizer
– Voltage Value On A Zener Diode
– Characteristics Of A Led Diode
– Seven Segment Digital Display
