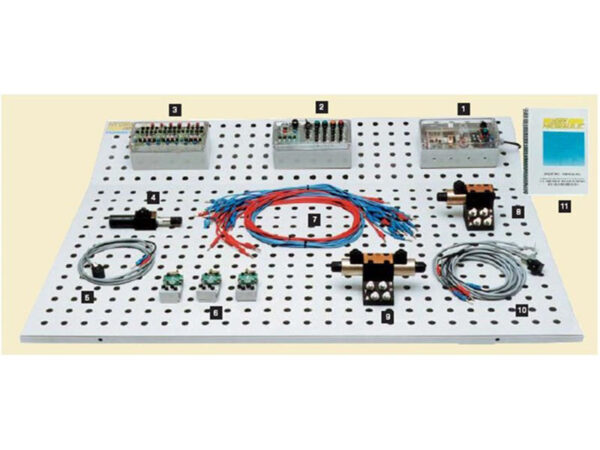

Electro Hydraulic Level 1

Model No. 53952017

– Electronic power supply module 220 VAC/24 VDC, I= 5 A.
– Over load and short circuit protection
– On-off switch.
– On-off indication lamp
– Electronically stabilized
– =4mm electronic quick connectors
– Plastic box with printed transparent cover
– Control unit.
– 4 push buttons, 2 green, 1 red, 1 yellow, with 1 normally open + 1 normally closed contacts each.
– 1 switch with 1 normally open + 1 normally closed contacts.
– 1 connection / disconnection electronic timer, 0 a 6 seconds regulation.
– 4 spark supressing diodes
– 4 indicator lights, 2 green, 1 red and 1 yelow.
– ? =4mm quick connectors
– Plastic box with printed transparent cover
– Relay Module
– 3 relay unit with 4 exchanged (switched) contacts each.
– On-off light indicator on every relay solenoid.
– Spark suprising diode on every solenoid.
– 6 connection divider for positive voltage.
– 6 connection divider for negative voltage de
– ? =4mm quick connectors.
– Plastic box with printed transparent cover
– 1 4/2 solenoid valve, 24 Vdc solenoid and spring return. NW6 size valve, assembled on base plate with quick fit ecologic connectors.
– 1 4/3 solenoid valve, 24 Vdc solenoids and spring centered. A, B, P y T closed in centered position.

NW6 size valve, assembled on base plate with quick fit ecologic connectors.
– 1 Set of connectors for solenoids, 2 grey + 1 black, Including solenoid 2P+G connector, on-off indicator lamp, cable and male   =4mm quick connector
– 3 Limit switch. With 1 normally closed contact + 1 normally opened contact Transparent body,  =4mm female connectors.
– 1 Adjustable pressure switch. Max pressure=125 bar. Output signal by exchanged (switched) contact.
– 1 Cable + connector for pressure switch, male ? =4mm quick connector, cablelength 1,5 m
– 1 Set of connecting cables, formed by:
– 14 blue cables, 50 mm length, with 4 mm male quick connectors.
– 14 red cables, 50 mm length, with 4 mm male quick connectors
– 8 blue cables, 150 mm length, with  4 mm male quick connectors
– 8 red cables, 150 mm length, with 4 mm male quick connectors
– 1 Electro-hydraulics work-book with theory and practice

Every valve size will be NW6 – Cetop 3.
Every hydraulic connection will use anti-leakage quick-fit ecologic connectors
Every component will be suitable for working on panels with ?17 mm holes every 50mm (horizontally and vertically).”
For more details download catalogue from here
