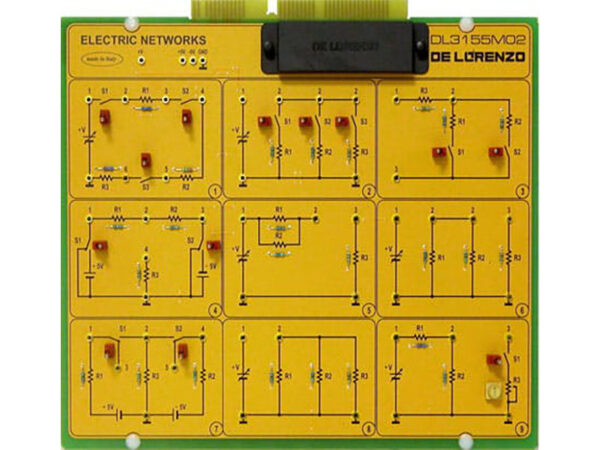

Electric Networks

Model No. DL 3155M02
Theoretical Topics:
– Elements Of An Electrical Network: Node, Arm, Mesh
– First Kirchoff Principle
– Second Kirchoff Principle
– Series Resistances
– Parallel Resistances
– Series-Parallel Connection
– Voltage Dividers
– Theorem Of The Effect Superposition
– Thevenin Theorem
– Norton Theorem
– Millman Theorem
– Fault Simulation

Circuit Blocks:
– Series Resistors And Kirchoff Voltage Law Verification
– Parallel Resistors And Kirchoff Current Law Verification
– Series-Parallel Resistors
– Effect Superposition
– Thevenin Theorem
– Norton Theorem
– Millman Theorem
– Voltage Divider

For more details download catalogue from here
