Electric Networks

Model No. DL 3155M02

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.

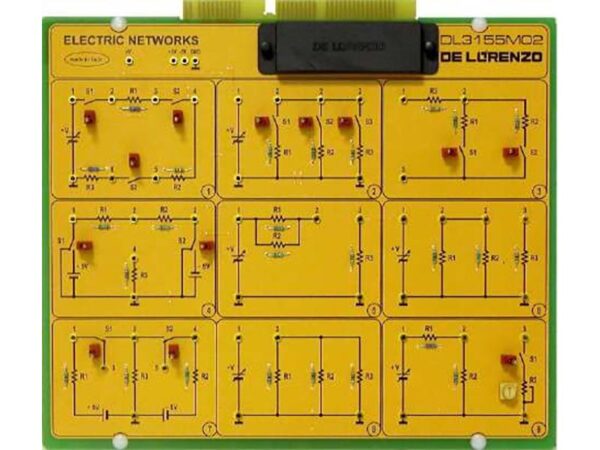

With this board the students can study the laws of Kirchhoff’s current and voltage, the superposition of the effects, voltage dividers and verify the most common basic theorems in electronics such as Thevenin, Norton and Millman.

THEORETICAL TOPICS
– Elements of an electrical network: node, arm, mesh
– First Kirchoff principle
– Second Kirchoff principle
– Series resistances
– Parallel resistances
– Series ? parallel connection
– Voltage dividers
– Theorem of the effect superposition
– Thevenin theorem
– Norton theorem
– Millman theorem
– Fault simulation

CIRCUIT BLOCKS
– Series resistors and Kirchoff voltage law verification
– Parallel resistors and Kirchoff current law verification
– Series  parallel resistors
– Effect superposition
– Thevenin theorem
– Norton theorem
– Millman theorem
– Voltage divider
– Complete with theoretical and practical manual.

For more details download catalogue from here
